FXA Instructor Guide

Chapter 6: Microphone Placement

Chapter Title

Microphone Placement

Recommended Grade Levels

• High School

• Upper middle school with instructor guidance

• Beginner college / Workforce Readiness Level

Course Placement

This chapter should be taught after:

• Chapter 1: Sound & Hearing

• Chapter 2: Basic Electronics

• Chapter 3: Digital Audio

• Chapter 4: Connectivity

• Chapter 5: Microphones

This chapter prepares students for:

• vocal recording

• instrument recording

• studio setup

• live capture awareness

• source isolation

• room awareness

• stereo techniques

• recording quality decisions

• troubleshooting poor source capture

Microphone placement is one of the most important recording skills because even the right microphone can produce poor results if it is placed incorrectly.

1. Chapter Purpose

This chapter introduces students to the principles and practical decisions involved in microphone placement.

Students will learn:

• why placement matters

• how distance affects recording tone and detail

• how angle affects capture

• how source position changes the result

• how room sound affects microphone placement

• why placement matters for both isolation and realism

• basic stereo placement awareness

• how microphone placement affects recording quality before mixing begins

The goal is not to turn students into advanced classical recording engineers in one chapter. The goal is to give them a strong practical foundation so they understand that placement is a creative and technical decision.

2. Big Ideas

By the end of this chapter, students should understand these core ideas:

• Microphone placement strongly affects recording quality.

• Small position changes can create major tonal differences.

• Distance affects detail, room sound, and source balance.

• Angle affects brightness, focus, and unwanted sound pickup.

• Placement should match the source, room, and goal.

• Good placement can reduce problems before mixing.

• Poor placement can create issues that plugins cannot fully fix.

• Stereo recording techniques use purposeful microphone placement strategies.

• Listening and adjusting are essential parts of good engineering.

3. Essential Questions

Use these throughout the lesson:

• Why does microphone placement matter so much?

• How does distance affect the sound being recorded?

• How does microphone angle change the result?

• Why can the same microphone sound different in different positions?

• How does room sound affect placement decisions?

• Why is placement part of both technical and creative recording?

• Why might moving a mic one inch matter?

• How can better placement reduce the need for fixing later?

4. Learning Objectives

Students will be able to:

1. Explain why microphone placement is important in recording.

2. Describe how distance affects tonal balance and room pickup.

3.  Describe how angle affects microphone capture.

4. Recognize that source movement and mic movement both affect results.

5. Explain why placement must match the source and environment.

6. Demonstrate beginner-level awareness of stereo microphone techniques.

7. Apply placement reasoning to common recording situations.

8. Identify poor placement problems in simple examples.

9. Use microphone placement vocabulary correctly.

10. Show professional thinking about listening, adjusting, and testing placements.

5. Standards / Program Alignment

This chapter supports foundational competencies in:

• audio engineering fundamentals

• recording workflow readiness

• technical listening development

• source capture skills

• problem-solving in studio environments

• creative and technical decision-making

• career and technical education

6. Estimated Time

Standard Delivery

• 1 class period: 60–90 minute overview

• 2 class periods: ideal for instruction + placement demonstration

• 3 class periods: ideal for instruction + application lab + assessment

Suggested Breakdown

Option A: Single Block

• hook / intro – 10 min

• direct instruction – 25 min

• placement demo – 15 min

• guided activity – 20 min

• wrap-up / exit ticket – 10 min

Option B: Two-Day Delivery

Day 1

why placement matters

distance and angle

room awareness

Day 2

common source examples

stereo awareness

application scenarios

worksheet / assessment

Option C: Three-Day Delivery

Day 1

vocabulary and placement basics

Day 2

source examples and practical comparisons

Day 3

stereo introduction

troubleshooting

lab / assessment

7. Teacher Preparation Checklist

Before teaching this chapter, the instructor should:

• review the lesson video or chapter content

• prepare one or more microphones for demonstration

• prepare a sound source such as voice, speaker, or acoustic instrument

• prepare visuals showing different mic positions

• review simple stereo technique visuals

• prepare discussion examples of good vs poor placement

• prepare a board diagram showing close, medium, and far placement

• print or upload worksheets

• review assessment questions and answer key

• be ready to explain that there is often more than one usable placement choice depending on the goal

8. Materials Needed

Required

• projector or display

• whiteboard / markers

• chapter worksheet

• student notes

• lesson assessment

Recommended

• microphone

• microphone stand

• pop filter

• XLR cable

• audio interface

• speakers or headphones

• sound source for demonstration

• acoustic instrument or playback speaker

• stereo placement diagrams

• example images showing mic angle and distance

• DAW or recording playback setup if available

9. Academic Vocabulary

Students should learn and use these terms accurately:

• microphone placement

• distance

• angle

• off-axis

• on-axis

• proximity effect

• source

• room sound

• isolation

• bleed

• close miking

• ambient miking

• stereo miking

• mono capture

• direct sound

• reflected sound

• placement strategy

• tonal balance

• pickup area

• sweet spot

• phase awareness

• microphone stand

• pop filter

10. Key Content for the Instructor

A. What Is Microphone Placement?

Microphone placement is the decision of where and how a microphone is positioned relative to a sound source.

This includes:

• distance

• angle

• height

• direction

• relationship to the room

• relationship to other microphones if multiple mics are used

Teacher talking point

“The microphone itself matters, but where you place it often matters just as much.”

B. Why Placement Matters

A microphone can sound very different depending on where it is placed.

Placement affects:

• tone

• clarity

• low-end buildup

• room sound

• brightness

• background noise

• isolation

• realism

• balance between source and room

Teacher talking point

“You are not just recording the source. You are recording the source from a position.”

C. Distance

• Distance is one of the most important placement choices.

Close Placement

• Often captures more direct sound, more detail, and less room.

Farther Placement

• Often captures more room sound, more space, and less isolation.

Teacher talking point

“The farther the mic moves from the source, the more the room becomes part of the recording.”

Students should understand that there is no single best distance for every situation.

D. Angle

• The angle of a microphone affects what part of the source is emphasized or softened.

On-Axis

• Microphone pointed more directly at the source.

Off-Axis

• Microphone angled away from the source.

At a beginner level:

on-axis may often sound more direct and present

off-axis may soften some harshness or change tonal balance

Teacher talking point

“Sometimes moving the mic slightly off-axis can improve the sound without changing the mic.”

E. Source and Placement Relationship

Different sound sources need different placement approaches.

Examples:

• vocal

• acoustic guitar

• guitar amplifier

• kick drum

• spoken word

• room capture

Teacher talking point

“The placement has to fit the source, not just the microphone.”

F. Room Sound

Students should understand that the room is part of the recording.

A microphone placed farther back may capture:

• more reflections

• more ambience

• more room tone

• more unwanted sound in a poor room

Teacher talking point

“A great placement in a great room may sound natural. The same distance in a bad room may sound worse.”

This is a critical practical concept.

G. Isolation and Bleed

Placement affects how much of the intended source is captured compared with other sounds nearby.

Isolation

• Capturing the intended source clearly.

Bleed

• Unwanted pickup from other nearby sources.

Teacher talking point

“The closer and more focused the placement, the easier it often is to isolate the source.”

This matters in both studio and live settings.

H. Proximity Effect

At a beginner level, students should know:

some directional microphones can produce stronger low-frequency buildup when placed very close to the source

this is often called proximity effect

Teacher talking point

“Getting closer can add weight, but too close can also create muddiness or boominess.”

Keep it simple and practical.

I. Listening and Adjusting

Placement is not only theory. It is also listening.

Students should learn to:

• place the mic

• listen critically

• move it slightly

• compare again

• decide what works best for the goal

Teacher talking point

“Good engineers do not guess once and stop. They listen, adjust, and improve.”

J. Common Placement Thinking for Beginners

Vocal Recording

• avoid extreme closeness without control

• use pop filter when needed

• pay attention to plosives, room sound, and harshness

Acoustic Guitar

• placement changes tone drastically

• aiming at the sound hole can create too much boom in many beginner setups

• different angles capture different balances of body and string detail

Guitar Amplifier

• center vs edge placement on the speaker area affects tone

• small placement changes matter a lot

Spoken Word / Podcast

• balance clarity, proximity, and room control

• placement and angle matter for plosives and consistency

Teacher talking point

“A few inches can change the sound more than beginners expect.”

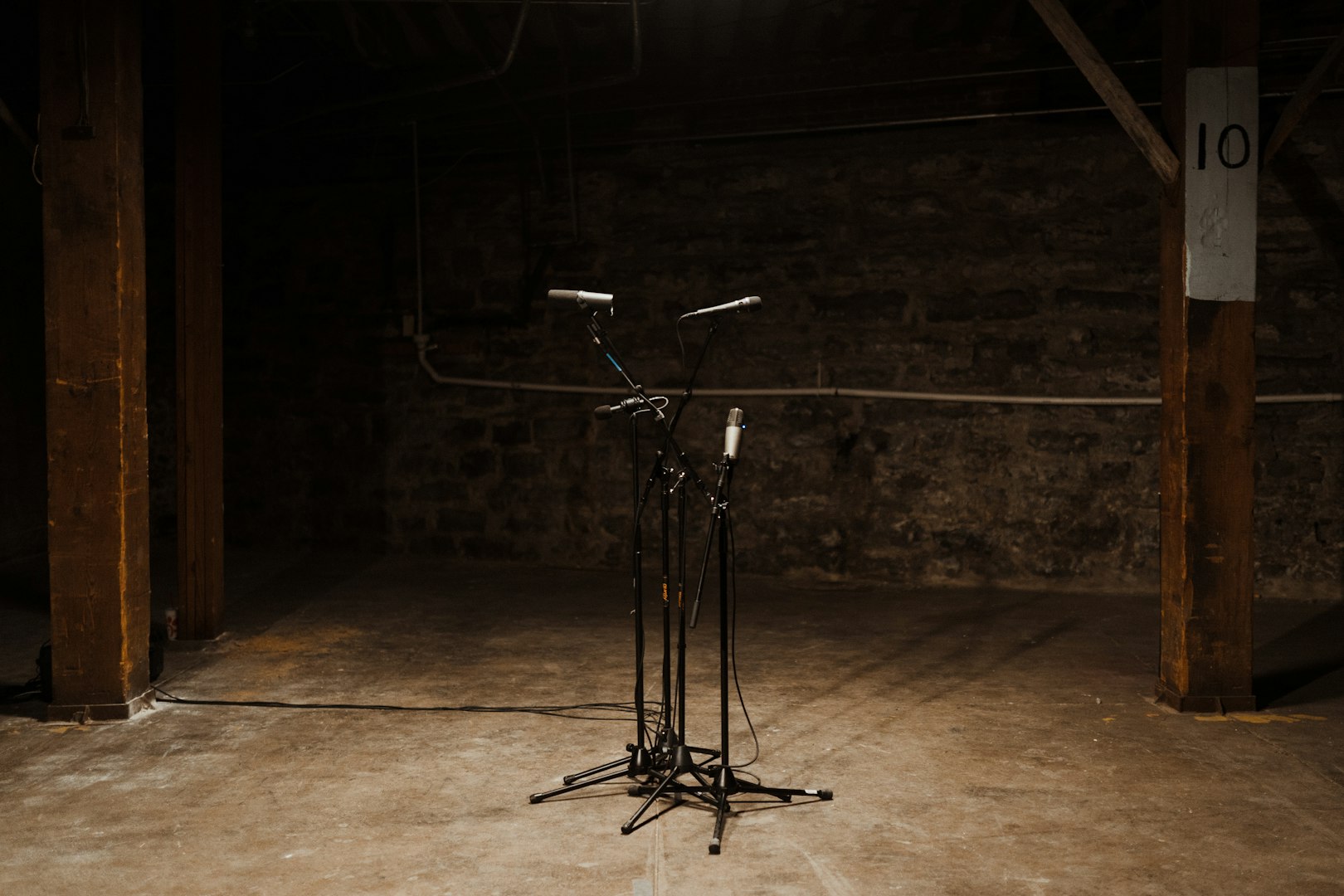

K. Stereo Placement Awareness

Introduce this clearly but simply.

Stereo techniques use two microphones arranged intentionally to capture width, space, or a more natural image.

Examples to introduce at awareness level:

• XY

• spaced pair

• ORTF

Students do not need mastery yet. They need awareness that stereo recording uses placement strategy, not random duplication.

Teacher talking point

“Stereo recording is not just using two microphones. It is using two microphones with a plan.”

L. Phase Awareness

At a beginner level:

• when multiple microphones capture the same source from different positions, timing differences can affect the sound

• this can create problems if the mics are placed poorly relative to each other

Do not overload the chapter, but do introduce the concept carefully.

Teacher talking point

“When using more than one mic, placement relationships matter—not just each mic by itself.”

M. Why Placement Matters Before Mixing

Students should clearly understand:

• good placement can reduce harshness

• good placement can reduce boominess

• good placement can improve isolation

• good placement can reduce room problems

• good placement often makes mixing easier

Teacher talking point

“It is easier to mix a well-recorded source than to rescue a badly placed recording.”

N. Professionalism and Setup Habits

Good placement also includes professional habits:

• use a stand properly

• secure the microphone safely

• adjust carefully

• do not let the mic drift or sag

• check the position before recording

• listen before committing

• document good placements when useful

Teacher talking point

“Placement is part of preparation, and preparation is part of professionalism.”

11. Instructor Script / Teaching Flow

Use this as a real classroom delivery guide.

Lesson Opening Hook

Start with this question:

“Can the same microphone sound different even if nothing about the mic changes?”

Let students answer.

Then say:

“Yes. Placement can completely change the recording. Today we’re learning how distance, angle, and position shape the sound before mixing even begins.”

Direct Instruction Part 1 – Placement Basics

Explain:

• the microphone captures from a position

• that position affects what the microphone hears

• changing the position changes the result

Teacher line

“Microphone placement is not random. It is a recording decision.”

Direct Instruction Part 2 – Distance

Show or describe:

• close placement

• medium placement

• farther placement

Ask:

• Which one likely gives more direct sound?

• Which one likely gives more room?

Reinforce:
close = more source / less room
far = more room / less isolation

Direct Instruction Part 3 – Angle

Show:

• mic aimed directly at source

• mic angled slightly off

• Explain how that may change brightness, harshness, or balance.

Teacher line

“You do not always need a different mic. Sometimes you need a different angle.”

Direct Instruction Part 4 – Common Source Examples

Present examples:

• vocal

• acoustic guitar

• guitar amp

• spoken word

Ask:

• Would you place the mic exactly the same for all of these?

• Why not?

Direct Instruction Part 5 – Stereo Awareness

Briefly explain:

• stereo placement uses intentional two-mic arrangements

• microphone relationships matter

• phase awareness matters

• Keep it introductory.

12. Recommended Board Notes

Write these on the board or in slides.

Core Definitions

• Microphone placement = position of the mic relative to the sound source

• Distance = how close or far the mic is

• Angle = direction the mic is pointed

• On-axis = pointed more directly at the source

• Off-axis = angled away from direct center

• Isolation = clearer focus on intended source

• Bleed = unwanted pickup from nearby sounds

• Room sound = reflections and ambience captured by the mic

• Proximity effect = extra low-frequency buildup that can happen with close placement on some directional mics

Core Studio Reminder

Small mic moves can create big recording changes.

13. Suggested Demonstrations

Demo 1: Close vs Far

Record or demonstrate the same source with:

• close placement

• medium placement

• farther placement

Ask students what changes:

• detail

• room sound

• fullness

• clarity

Demo 2: On-Axis vs Off-Axis

Aim the mic directly at the source, then angle it slightly off-axis.

Ask students:

• which sounds brighter?

• which sounds smoother?

• which feels more direct?

Demo 3: Vocal Placement

Show a vocal setup with:

• pop filter

• proper mic stand

• reasonable speaking distance

• Discuss plosives, room sound, and consistency.

Demo 4: Acoustic Instrument Placement

Use guitar or a speaker playing guitar if available.

Show that aiming at different areas produces different tonal results.

Demo 5: Stereo Awareness

Show a basic XY or spaced pair image and explain that stereo capture depends on placement strategy, not simply “two mics anywhere.”

14. Guided Discussion Questions

Use these throughout the lesson:

• Why does microphone placement matter so much?

• How does distance affect the sound?

• How can angle change the result?

• Why does the room matter when placing a microphone?

• What is isolation, and why is it useful?

• What is bleed, and when is it a problem?

• Why can small placement changes matter?

• Why is placement part of both technical and creative recording?

15. Common Student Misconceptions

Misconception 1

“Once the mic is set up, placement is basically finished.”
Correction: Placement often needs listening, testing, and adjustment.

Misconception 2

“Closer is always better.”
Correction: Closer can increase detail and isolation, but it can also create boominess, plosives, or unnatural balance.

Misconception 3

“If the mic is good, placement does not matter much.”
Correction: Even a great microphone can sound poor when placed badly.

Misconception 4

“Stereo recording just means using two mics.”
Correction: Stereo recording depends on purposeful placement relationships.

Misconception 5

“Problems from poor placement can always be fixed later.”
Correction: Some issues can be improved later, but good placement prevents many of them from happening.

16. Differentiation / Support Strategies

For Struggling Learners

• use repeated close / medium / far examples

• use simple before-and-after listening comparisons

• focus on one source at a time

• use labeled diagrams

• connect every concept to audible change

For Advanced Learners

• preview phase relationships in more detail

• discuss stereo techniques more specifically

• introduce 3:1 rule awareness at a simple level

• compare placement choices for different genres or aesthetics

For English Language Learners

• preteach terms like angle, distance, isolation, bleed

• use visuals and physical demonstration

• allow partner discussion

• repeat vocabulary in context

17. Classroom Activity Options

Activity A: Placement Comparison

Students compare descriptions of:

• close placement

• medium placement

• far placement

They identify which likely has more room sound, more direct sound, or more isolation.

Activity B: Source Matching

Students choose likely placement strategies for:

• studio vocal

• podcast voice

• acoustic guitar

• guitar amp

Activity C: Good Placement / Poor Placement

Show several recording scenarios and ask students which placement choices seem stronger and why.

Activity D: Polar Pattern and Placement Link

Students explain how mic pattern and mic placement work together.

Activity E: Stereo Awareness Match

Students match:

• XY

• spaced pair

• ORTF
to simple descriptions of stereo placement ideas.

18. Hands-On Lab

Lab Title

Hearing the Difference in Microphone Placement

Objective

Students identify how distance and angle affect recorded sound and explain why placement decisions matter.

Procedure

• Use one microphone and one sound source.

• Record or compare close, medium, and far placements.

• Compare on-axis and off-axis positions.

• Ask students to identify differences in tone, room sound, and clarity.

• Discuss which placement might fit different goals.

• Introduce one simple stereo awareness example if possible.

Student Output

Students complete a chart:

• Placement Example

• What Changed?

• More Direct or More Room?

• Likely Use

Close

__________

__________

__________

Medium

__________

__________

__________

Far

__________

__________

__________

Off-Axis

__________

__________

__________

19. Exit Ticket

Use this before students leave class.

Exit Ticket Questions

• What is microphone placement?

• How does distance affect the sound?

• What does off-axis mean?

• Why does room sound matter?

• Why can a small placement change matter?

20. Chapter 6 Quiz Sample

If you need a teacher backup question pool, here is a sample set.

Multiple Choice

1. Microphone placement refers to:
A. only the type of cable used
B. where and how the microphone is positioned relative to the source
C. only the DAW settings
D. the file format used

2. A closer microphone position often captures:
A. more direct sound and less room
B. less source detail
C. only stereo sound
D. more digital data

3. A farther microphone position often captures:
A. less room sound
B. more room and ambience
C. no source at all
D. only phase cancellation

4. On-axis generally means:
A. the mic is pointed more directly at the source
B. the mic is turned off
C. the mic is unplugged
D. the speakers are muted

5. Off-axis placement can sometimes:
A. soften harshness or change tone
B. remove the need for a microphone
C. replace phantom power
D. change sample rate

6. Bleed refers to:
A. unwanted pickup from other nearby sounds
B. a type of file export
C. the power cable path
D. only digital distortion

7. Isolation refers to:
A. ignoring the signal path
B. clearer focus on the intended source
C. recording from all directions equally
D. automatic stereo widening

8. Proximity effect is commonly associated with:
A. low-frequency buildup from very close placement on some directional microphones
B. computer latency
C. plugin delay
D. file compression

9. Which statement is correct?
A. Placement matters less than everything else
B. A great microphone always sounds great no matter where it is placed
C. Small placement changes can create major tonal differences
D. Stereo recording means two microphones anywhere in the room

10. Why is good placement important?
A. it can reduce problems before mixing
B. it makes every room sound identical
C. it removes the need for listening
D. it replaces microphone choice completely

21. Chapter 6 Quiz Answer Key

1. B

2. A

3. B

4. A

5. A

6. A

7. B

8. A

9. C

10. A

22. Answer Key Explanations

1. Placement definition

• Microphone placement is where and how the mic is positioned relative to the source.

2. Close placement

• Closer placement often increases direct sound and reduces room pickup.

3. Far placement

• Farther placement often includes more room sound and ambience.

4. On-axis

• On-axis means the microphone is pointed more directly at the source.

5. Off-axis

• Off-axis placement can change tonal balance and sometimes soften harshness.

6. Bleed

• Bleed is unwanted pickup from other nearby sound sources.

7. Isolation

• Isolation means clearer focus on the intended source.

8. Proximity effect

• Very close placement on some directional microphones can increase low-frequency buildup.

9. Small changes

• Small mic moves can create very large audible differences.

10. Better capture

• Good placement improves the sound before the mixing stage.

23. Short Response Assessment

Prompt

Explain why microphone placement is one of the most important parts of recording.

Strong Response Should Include

• placement changes tone and clarity

• distance and angle matter

• room sound matters

• placement affects isolation and bleed

• good placement reduces later problems

• small changes can make a big difference

24. Performance Task

Assignment

• Have students evaluate several recording situations and explain how they would think about placement.

Example Prompt

A student is recording a vocal, an acoustic guitar, and a guitar amp. Explain how distance, angle, and room awareness might affect microphone placement for each source.

25. Grading Rubric

Participation / Discussion – 20 points

• 18–20: engaged, accurate vocabulary, strong participation

• 14–17: mostly engaged

• 10–13: limited participation

• 0–9: off task or absent

Worksheet – 25 points

• 23–25: accurate and complete

• 18–22: mostly accurate

• 12–17: partial understanding

• 0–11: weak or incomplete

Quiz – 25 points

• based on total correct

Lab / Application Activity – 30 points

• 27–30: strong understanding of placement reasoning and listening choices

• 21–26: mostly correct

• 15–20: basic understanding

• 0–14: minimal or inaccurate

26. Pacing Guide for Teachers

45-Minute Version

• 5 min hook

• 15 min distance and angle intro

• 10 min room/isolation awareness

• 10 min activity

• 5 min exit ticket

60-Minute Version

• 10 min intro

• 20 min direct instruction

• 10 min demonstration

• 15 min worksheet

• 5 min wrap-up

90-Minute Version

• 10 min hook

• 25 min instruction

• 15 min demonstrations

• 20 min application or lab

• 10 min assessment

• 10 min wrap-up

27. Teacher Talking Points

These are exact lines teachers can use:

• “Where the mic goes is part of the sound.”

• “You are not just recording a source. You are recording a position.”

• “Closer usually means more source and less room.”

• “Farther usually means more room and less isolation.”

• “A slight angle change can change the tone.”

• “A great mic in a bad position can still sound bad.”

• “Good placement reduces problems before mixing starts.”

• “Engineers listen, move, compare, and improve.”

28. Common Real-World Studio Connections

• Use these to make the lesson relevant.

• A vocal mic placed too close may create plosives or too much low-end buildup.

• A mic placed too far in a poor room may capture too much room sound.

• A guitar amp mic aimed at a different speaker area can sound brighter or darker.

• An acoustic guitar mic aimed poorly can sound boomy or thin.

• Podcast placement affects clarity, plosives, and consistency.

• Two mics on one source require awareness of placement relationship, not just distance.

• Better placement often makes EQ and cleanup easier later.

29. Teacher Notes on Classroom Management

Because this chapter may involve active demonstration:

• keep students from grabbing or repositioning microphones carelessly

• demonstrate first, then allow guided participation

• use stands securely

• keep cables safely routed

• maintain consistent listening level during comparisons

• emphasize listening before and after each move

• keep the class focused on audible differences, not random guessing

30. Mini-Lesson on Professional Relevance

I

Key Points

• microphone placement is one of the first major engineering decisions in recording

• good placement saves time during editing and mixing

• poor placement creates preventable problems

• professional engineers test and listen rather than assuming one setup is always right

Suggested Teacher Line

“Professional recording is not just about owning gear. It is about knowing where to place it and why.”

31. Accommodations / Inclusion

For students needing extra support

• use repeated close / far comparisons

• simplify to one source at a time

• use labeled diagrams

• reinforce on-axis vs off-axis with visuals

• let students describe sound in plain language before technical language

For advanced students

• preview phase and mic relationship concepts further

• introduce stereo techniques in more detail

• discuss proximity effect in different recording contexts

• compare aesthetic choices, not just corrective ones

For general accessibility

• teach visually and verbally

• use real sound comparisons

• allow partner observation and discussion

• reinforce vocabulary through examples

32. Homework Options

Option 1

• Write a paragraph explaining how distance affects microphone placement.

Option 2

• Describe one way off-axis placement might help a recording.

Option 3

• Explain why room sound matters when placing a microphone.

33. Extension Activities

For stronger groups or longer periods:

• compare stereo techniques more deeply

• evaluate mic placement choices in studio photos

• discuss phase problems with multiple mics

• compare “natural” vs “tight/isolated” recording goals

• document good placement experiments in a listening journal

• explore placement choices for drums or ensembles later

34. Instructor Quick Reference Sheet

Most Important Terms

• microphone placement

• distance

• angle

• on-axis

• off-axis

• room sound

• isolation

• bleed

• proximity effect

• stereo miking

• sweet spot

Most Important Distinction

• The same microphone can sound very different depending on placement.

Most Important Studio Link

• Placement shapes the recording before processing even starts.

Most Important Professional Link

• Good engineers listen, adjust, and refine placement rather than guessing once.

35. What Mastery Looks Like

A student has mastered Chapter 6 when they can:

• explain what microphone placement means

• describe how distance changes the sound

• describe how angle changes the sound

• explain why room sound matters

• connect placement to isolation and bleed

• identify basic reasons to adjust placement

• show awareness that stereo setups require intentional placement relationships
