FXA Instructor Guide

Chapter 5: Microphones

Chapter Title

Microphones

Recommended Grade Levels

• High School

• Upper middle school with instructor guidance

• Beginner College / Workforce Readiness level

Course Placement

This chapter should be taught after:

• Chapter 1: Sound & Hearing

• Chapter 2: Basic Electronics

• Chapter 3: Digital Audio

• Chapter 4: Connectivity

This chapter prepares students for:

• microphone placement

• recording sessions

• vocal recording

• instrument recording

• signal path

• gain staging

• session setup

• troubleshooting

• live and studio applications

Microphones are a foundational part of audio engineering because they convert sound in the air into an electrical signal that can travel through the recording chain.

1. Chapter Purpose

This chapter introduces students to the role, types, and practical use of microphones in audio engineering and music production.

Students will learn:

• what microphones do

• how microphones fit into the signal path

• the difference between major microphone types

• how microphone design affects use

• what polar patterns are

• why microphone choice matters

• how microphones are used in studio and live applications

• how to handle microphones properly

• why microphone knowledge affects recording quality

The goal is not to overload students with advanced engineering detail at first. The goal is to help them become confident in choosing, recognizing, and using microphones appropriately.

2. Big Ideas

By the end of this chapter, students should understand these core ideas:

• Microphones convert acoustic sound into electrical signal.

• Different microphone types are designed for different purposes.

• Microphone choice affects sound, clarity, detail, and recording results.

• Polar patterns affect what a microphone captures and rejects.

• Microphones are used differently in studio and live environments.

• Signal path begins at the microphone in many recording workflows.

• Good microphone handling and setup improve professionalism and protect equipment.

• Understanding microphones leads to better recording decisions.

3. Essential Questions

Use these throughout the lesson:

• What does a microphone do?

• Why are there different microphone types?

• How does microphone choice affect recording results?

• What is a polar pattern?

• Why does direction matter when using a microphone?

• Why might one microphone be better for one source than another?

• How do microphones fit into the recording signal path?

• Why is microphone handling part of professionalism?

4. Learning Objectives

Students will be able to:

1. Explain the role of a microphone in the audio signal path.

2. Define a microphone as a transducer that converts sound into electrical signal.

3. Identify the main microphone categories at a beginner level.

4.  Describe common uses for different microphone types.

5. Explain what a polar pattern is.

6. Recognize how direction affects microphone capture.

7. Identify common studio and live microphone applications.

8. Demonstrate proper microphone handling and setup awareness.

9. Apply microphone knowledge to simple source-selection situations.

10. Use key microphone vocabulary accurately in written and verbal responses.

5. Standards / Program Alignment

This chapter supports foundational competencies in:

• audio engineering fundamentals

• recording technology literacy

• signal flow understanding

• studio workflow readiness

• live sound awareness

• career and technical education

• professional equipment handling

6. Estimated Time

Standard Delivery

• 1 class period: 60–90 minute overview

• 2 class periods: ideal for instruction + microphone demonstrations

• 3 class periods: ideal for instruction + application activity + assessment

Suggested Breakdown

Option A: Single Block

• hook / intro – 10 min

• direct instruction – 25 min

• microphone demo – 15 min

• guided activity – 20 min

• wrap-up / exit ticket – 10 min

Option B: Two-Day Delivery

Day 1

• what microphones do

• microphone types

• studio vs live use

Day 2

• polar patterns

• practical selection

• signal path

• worksheet / assessment

Option C: Three-Day Delivery

Day 1

• microphone basics and vocabulary

Day 2

• microphone types and polar patterns

Day 3

• applications, handling, troubleshooting, assessment

7. Teacher Preparation Checklist

Before teaching this chapter, the instructor should:

• review the lesson video or chapter content

• gather microphone examples if possible

• prepare images of common microphone types

• prepare a simple signal path diagram starting with a microphone

• review basic microphone handling rules

• prepare demonstration audio examples if available

• prepare discussion prompts comparing microphone uses

• print or upload worksheets

• review quiz and answer key

• be ready to connect microphone choice to real recording results

8. Materials Needed

Required

• projector or display

• whiteboard / markers

• chapter worksheet

• student notes

• lesson assessment

Recommended

• dynamic microphone

• condenser microphone

• large-diaphragm condenser image or real example

• small-diaphragm condenser image or real example

• microphone stand

• XLR cable

• audio interface

• headphones or speakers

• polar pattern visual

• signal path diagram

• comparison photos of studio and live microphones

9. Academic Vocabulary

Students should learn and use these terms accurately:

• microphone

• transducer

• diaphragm

• dynamic microphone

• condenser microphone

• ribbon microphone

• polar pattern

• cardioid

• omnidirectional

• bidirectional

• pickup pattern

• sensitivity

• studio microphone

• live microphone

• vocal microphone

• instrument microphone

• phantom power

• sound source

• signal path

• rejection

• proximity effect

• microphone stand

• pop filter

10. Key Content for the Instructor

A. What Is a Microphone?

A microphone is a device that converts sound energy in the air into an electrical audio signal.

You may also introduce the word transducer:
A transducer changes one form of energy into another.

Teacher talking point

“A microphone is the starting point where sound becomes signal.”

This definition is one of the most important in the chapter.

B. Why Microphones Matter

Without microphones, many recording workflows cannot begin. The microphone affects:

• clarity

• tone

• detail

• background noise capture

• directionality

• recording quality

• how a source sits in the mix later

Teacher talking point

“Before EQ, compression, and plugins, the microphone choice already shapes the sound.”

C. Main Microphone Types

Keep this beginner-friendly but accurate.

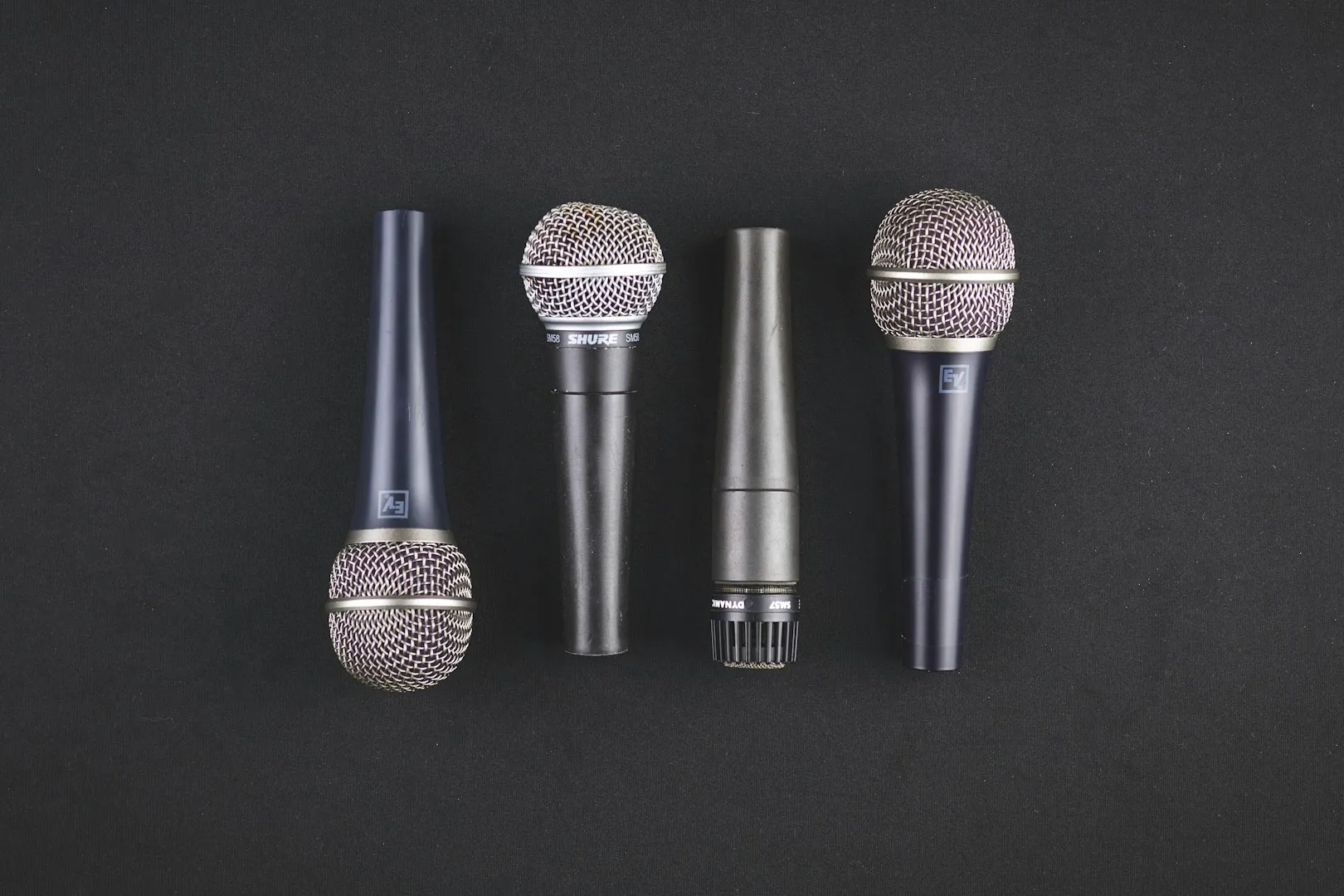

Dynamic Microphones

Often durable, commonly used in live sound and many studio situations, especially when ruggedness and focused use matter.

Common beginner understanding:

• durable

• practical

• common on stage

• often good for loud sources or live use

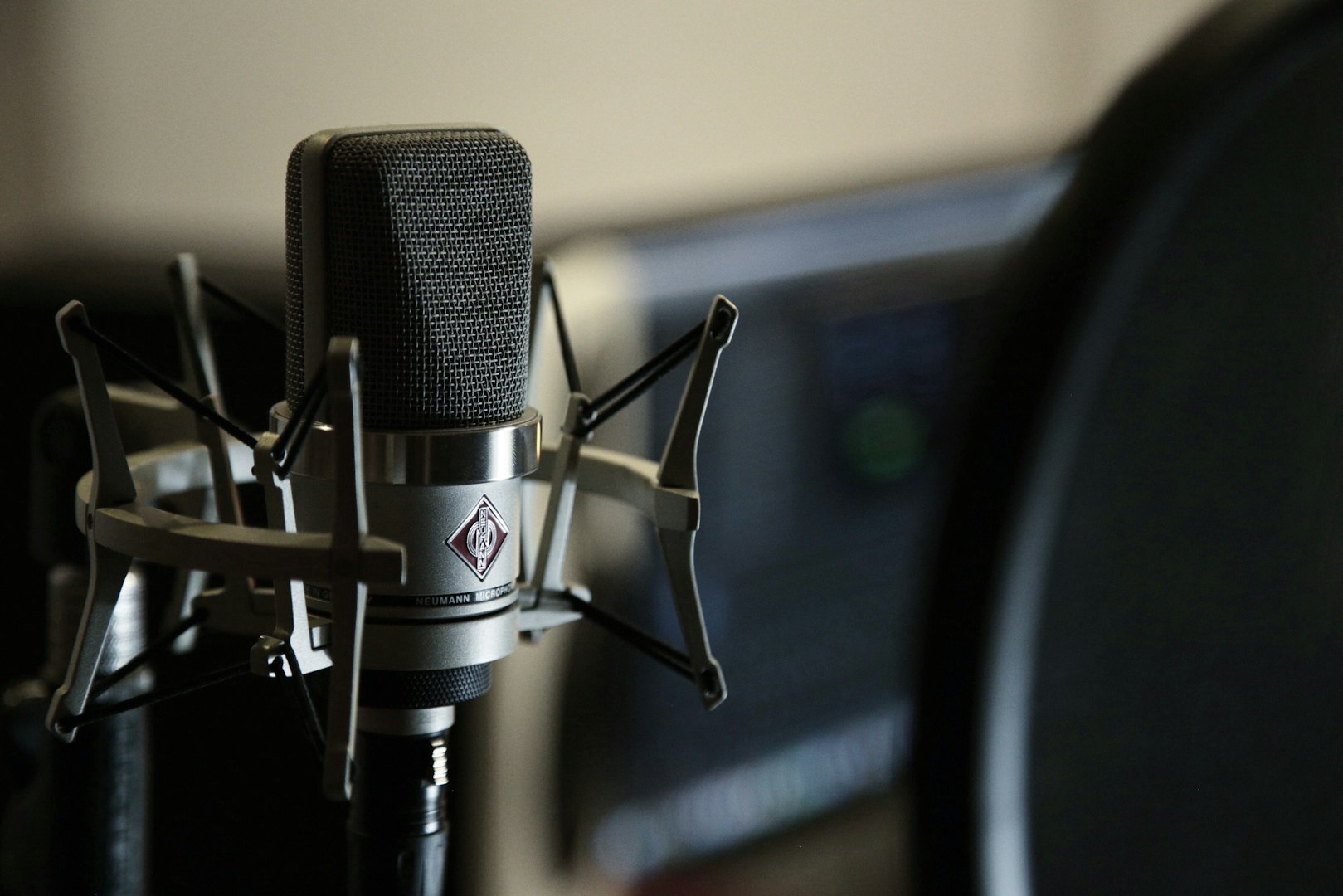

Condenser Microphones

Often more sensitive and commonly used in studio recording where detail and nuance are important.

Common beginner understanding:

• detailed

• sensitive

• common for studio vocals and acoustic sources

• often require phantom power in common studio use

Ribbon Microphones

Can be introduced as a third category for awareness, even if not taught deeply yet.

 Common beginner understanding:

• more specialized

• often valued for smooth or natural character in some professional applications

• handled with more care

Teacher talking point

“Different microphones are built differently because different recording situations need different strengths.”

D. Dynamic vs Condenser at a Beginner Level

Students do not need a full electrical engineering breakdown yet. They do need practical understanding.

Dynamic

• often tougher

• often common for live performance

• often less sensitive than many condensers

• strong beginner choice for many practical situations

Condenser

• often more sensitive

• often captures more detail

• common in studio work

• often used for vocals, acoustic instruments, and controlled recording spaces

Teacher talking point

“A condenser may capture more detail, but that does not automatically make it the best choice for every situation.”

E. Diaphragm Awareness

• Microphones contain a diaphragm that reacts to sound waves.

 At a beginner level, students should know:

• the diaphragm responds to sound energy

• microphone design affects what the microphone captures

You may mention:

• large-diaphragm condenser

• small-diaphragm condenser

• Keep it simple unless students are ready for more.

F. Polar Patterns

A polar pattern describes how a microphone responds to sound coming from different directions.

This is a major concept in the chapter.

Cardioid

• Most sensitive to the front and less sensitive to the rear. Very common in both studio and live applications.

Omnidirectional

• Captures sound from all directions.

Bidirectional / Figure-8

• Captures from the front and rear, with reduced pickup at the sides.

Teacher talking point

“A microphone does not hear every direction equally. Polar pattern tells you where it listens best.”

G. Why Polar Patterns Matter

Polar patterns affect:

• isolation

• background noise pickup

• room capture

• feedback control in live settings

• recording focus

• microphone placement strategy

Teacher talking point

“If students understand direction, they make better microphone choices immediately.”

H. Studio vs Live Microphone Use

Students should understand that microphones are often selected based on the environment.

Studio Use

Controlled environment, more focus on detail, nuance, tone, and clean capture.

Live Use

More focus on durability, feedback control, stage practicality, and reliable performance.

Teacher talking point

“A great studio mic is not automatically the best live-stage mic, and vice versa.”

I. Phantom Power

At a beginner level, students should know:

• many condenser microphones commonly require phantom power

• phantom power is typically supplied by an interface, mixer, or preamp in modern systems

• it is commonly referred to as 48V

• Keep the explanation practical and safe.

Teacher talking point

“Students do not need to fear phantom power, but they do need to understand when it matters.”

J. Microphones in the Signal Path

Students should clearly connect microphones to the earlier chapters.

Simple path:
Sound source → microphone → XLR cable → interface / preamp → computer / recorder

Teacher talking point

“The microphone captures the source, but the rest of the chain depends on that first step being right.”

K. Common Microphone Applications

Keep this practical and beginner-friendly.

Examples:

• vocal recording

• podcast or speech capture

• kick drum

• guitar amplifier

• acoustic guitar

• choir or room capture

• live handheld vocal use

• instrument recording

Students do not need to memorize every pairing yet. They need to understand that source choice matters.

L. Basic Microphone Selection Thinking

Students should ask:

• What am I recording?

• Is this live or studio?

• How much background sound do I want to reject?

• Do I need durability?

• Do I need more detail?

• What connection does the mic use?

• Does it require phantom power?

Teacher talking point

“Microphone choice should match the source and the situation.”

M. Handling and Professionalism

•Microphones are tools and should be treated carefully.

Good habits include:

• use a stand when appropriate

• avoid dropping microphones

• avoid hitting or tapping capsules unnecessarily

• connect and disconnect carefully

• keep microphones protected when not in use

• use pop filters when needed

• store microphones properly

• do not swing a microphone by the cable

Teacher talking point

“Professional microphone habits protect both sound quality and equipment life.”

N. Why Microphone Knowledge Matters in Audio Engineering

Understanding microphones helps students:

• get better recordings at the source

reduce problems before mixing

• choose better tools for the job

• improve setup speed and confidence

• troubleshoot capture issues

• work more professionally in both studio and live settings

11. Instructor Script / Teaching Flow

Use this as a real classroom delivery guide.

Lesson Opening Hook

Start with this question:

“Why can two microphones recording the same voice sound different?”

Let students answer.

Then say:

“Today we’re learning microphones—the tools that begin the signal path and shape the sound before it ever reaches the DAW.”

Direct Instruction Part 1 – What a Microphone Does

Explain:

• sound moves through air

• the microphone responds to that sound

• the microphone converts it into signal

Teacher line

“A microphone is where the recording process begins.”

Direct Instruction Part 2 – Major Types

Introduce:

• dynamic

• condenser

• ribbon

• Keep ribbon at awareness level unless students are ready for more.

• Discuss real-world practical tendencies:

• dynamic = durable, common live and many studio uses

• condenser = detailed, common studio use

• ribbon = specialized, handled carefully

Direct Instruction Part 3 – Polar Patterns

Use visuals if possible.

Explain:

• cardioid = front-focused

• omni = all directions

• bidirectional = front and rear

Ask:

• Which one might help reject sound behind the mic?

• Which one might capture more room?

Direct Instruction Part 4 – Studio vs Live Thinking

Present two situations:

• singer in a studio booth

• singer on a loud stage

Ask:

• Would the microphone needs be exactly the same?

• Why or why not?

Direct Instruction Part 5 – Signal Path Reminder

Write:
Voice → Mic → XLR → Interface → Computer

Ask:

Where does the signal first begin?

What happens if the microphone choice is poor?

How might that affect everything later?

12. Recommended Board Notes

Write these on the board or in slides.

Core Definitions

• Microphone = device that converts sound into electrical signal

• Transducer = device that changes one form of energy into another

• Dynamic microphone = durable, common in live and many practical uses

• Condenser microphone = sensitive, detailed, common in studio use

• Polar pattern = directional pickup behavior of a microphone

• Cardioid = front-focused pickup

• Omnidirectional = pickup from all directions

• Bidirectional = front and rear pickup

• Phantom power = power commonly needed by many condenser microphones

Core Studio Reminder

The microphone choice affects the recording before mixing even begins.

13. Suggested Demonstrations

Demo 1: Microphone Type Comparison

Show a dynamic and condenser mic if available.

Ask:

• Which one do you usually see on stage?

• Which one do you often see in studio vocal images?

Keep it practical.

Demo 2: Polar Pattern Awareness

Use one microphone and have a student speak:

• in front of it

• to the side

• behind it

• Explain how direction changes capture depending on the mic pattern.

Demo 3: Signal Path Walkthrough

Show:
Mic → XLR → Interface → Computer

Ask students to name each step and explain what the microphone contributes.

Demo 4: Handling Habits

Demonstrate:

• correct stand use

• correct cable connection

• wrong handling

• proper storage awareness

Demo 5: Source Matching

Present 3 recording situations:

• live stage vocal

• studio vocal

• acoustic guitar

• Ask students which type of mic might make sense and why.

14. Guided Discussion Questions

Use these throughout the lesson:

1. What does a microphone do in the recording chain?

2. Why are there different microphone types?

3. Why might a condenser not always be the best choice?

4. Why is polar pattern important?

5. Why does microphone direction matter?

6. Why is microphone choice part of engineering, not just performance?

7. Why does the recording environment affect microphone choice?

8. Why is microphone handling part of professionalism?

15. Common Student Misconceptions

Misconception 1

“The most expensive microphone is always the best choice.”
Correction: The best microphone depends on the source, environment, and goal.

Misconception 2

“Condenser always means better.”
Correction: Condensers are often more sensitive, but that does not make them right for every situation.

Misconception 3

“A microphone hears equally in every direction.”
Correction: Polar patterns change how microphones respond to different directions.

Misconception 4

“Microphone choice can be fixed later with plugins.”
Correction: A poor capture decision at the source can create problems that are harder to fix later.

Misconception 5

“Mic handling is just common sense and not part of engineering.”
Correction: Handling affects equipment safety, noise, workflow, and professionalism.

16. Differentiation / Support Strategies

For Struggling Learners

• use photos and real microphones

• keep the focus on a few essential categories first

• repeat dynamic vs condenser in practical language

• use polar pattern visuals

• connect everything to simple recording scenarios

For Advanced Learners

• introduce large- vs small-diaphragm condenser differences

• discuss proximity effect at a preview level

• compare studio and broadcast mic uses

• discuss how source SPL and environment affect selection

For English Language Learners

• preteach vocabulary

• use labeled microphone visuals

• pair terms with real objects or images

• allow partner discussion before written response

17. Classroom Activity Options

Activity A: Microphone Type Sort

Students sort microphones into:

• dynamic

• condenser

• ribbon awareness category

• Use images or descriptions.

Activity B: Match the Source

Students choose a likely microphone type for:

• stage vocal

• studio vocal

• podcast voice

• guitar amp

• acoustic guitar

Keep answers beginner-friendly and reasoning-based.

Activity C: Polar Pattern Match

Students match:

• cardioid

• omnidirectional

• bidirectional
to directional behavior descriptions.

Activity D: Signal Path Build

Students arrange:

• sound source

• microphone

• XLR cable

• interface

• computer

in correct order.

Activity E: Good Handling / Bad Handling

Show different behaviors and ask students which are professional and why.

18. Hands-On Lab

Lab Title

Choosing and Understanding Microphones

Objective

Students identify microphone types, understand directional behavior, and explain how microphones fit into the signal path.

Procedure

1. Observe or identify different microphone types.

2. Match each microphone to a likely use.

3. Identify the basic signal path starting at the microphone.

4. Discuss polar pattern behavior using visuals or demonstrations.

5. Explain one reason a microphone may be chosen for a specific task.

6. Review handling and setup habits.

Student Output

Students complete a chart:

Microphone Type

Likely Use

Key Characteristic

Needs Phantom Power?

Common Setting

Dynamic

__________

__________

__________

__________

Condenser

__________

__________

__________

__________

Ribbon

__________

__________

__________

__________

19. Exit Ticket

Use this before students leave class.

Exit Ticket Questions

1. What does a microphone do?

2. What is one difference between a dynamic and condenser microphone?

3. What is a polar pattern?

4. Why does microphone direction matter?

5. Why is microphone choice important in recording?

20. Chapter 5 Quiz Sample

If you need a teacher backup question pool, here is a sample set.

Multiple Choice

1. A microphone is best described as:
A. a speaker that plays sound
B. a device that converts sound into electrical signal
C. a cable adapter
D. a DAW setting

2. A transducer is a device that:
A. changes one form of energy into another
B. only raises volume
C. only works live
D. stores MP3 files

3. Which microphone type is commonly associated with durability and live use?
A. dynamic
B. condenser only
C. ribbon only
D. headphone mic stand

4. Which microphone type is commonly associated with greater sensitivity and studio detail?
A. dynamic only
B. condenser
C. power cable
D. monitor controller

5. Which term describes a microphone’s directional pickup behavior?
A. latency
B. sample rate
C. polar pattern
D. bit depth

6. Which polar pattern is most commonly front-focused?
A. cardioid
B. omnidirectional
C. bidirectional only from the sides
D. stereo bus

7. Which polar pattern captures from all directions?
A. cardioid
B. omnidirectional
C. bidirectional
D. line level

8. Many condenser microphones commonly require:
A. phantom power
B. guitar pedals
C. monitor stands
D. USB storage

9. Why is microphone choice important?
A. it affects the recording before mixing begins
B. it removes all need for placement
C. it makes every room sound the same
D. it replaces gain staging

10. Why is proper mic handling important?
A. it affects professionalism and equipment safety
B. it changes file format
C. it automatically improves sample rate
D. it eliminates all background noise

21. Chapter 5 Quiz Answer Key

1. B

2. A

3. A

4. B

5. C

6. A

7. B

8. A

9. A

10. A

22. Answer Key Explanations

1. Microphone

• A microphone converts sound into electrical signal.

2. Transducer

• A transducer changes one form of energy into another.

3. Dynamic microphone

• Dynamic microphones are commonly valued for durability and practical live use.

4. Condenser microphone

• Condenser microphones are commonly associated with greater sensitivity and detail in studio use.

5. Polar pattern

• Polar pattern describes directional pickup behavior.

6. Cardioid

• Cardioid is commonly front-focused.

7. Omnidirectional

• Omnidirectional captures from all directions.

8. Phantom power

• Many condensers commonly require phantom power.

9. Source effect

• Microphone choice shapes the source before later processing.

10. Handling

• Good handling protects equipment and supports professional workflow.

23. Short Response Assessment

Prompt

• Explain why microphone knowledge is important in audio engineering.

Strong Response Should Include

microphones begin the signal path

microphones convert sound into electrical signal

different microphones fit different uses

polar patterns affect capture

microphone choice affects recording quality

handling and setup matter

24. Performance Task

Assignment

Have students evaluate a few basic recording situations and explain which microphone type might make sense and why.

Example Prompt

A singer is recording in a studio, a vocalist is performing on stage, and a speaker is recording a podcast. Explain what microphone type might fit each situation and why microphone choice matters.

25. Grading Rubric

Participation / Discussion – 20 points

• 18–20: engaged, accurate vocabulary, strong participation

• 14–17: mostly engaged

• 10–13: limited participation

• 0–9: off task or absent

Worksheet – 25 points

• 23–25: accurate and complete

• 18–22: mostly accurate

• 12–17: partial understanding

• 0–11: weak or incomplete

Quiz – 25 points

• based on total correct

Lab / Application Activity – 30 points

• 27–30: strong reasoning about type choice, direction, and signal path

• 21–26: mostly correct

• 15–20: basic understanding

• 0–14: minimal or inaccurate

26. Pacing Guide for Teachers

45-Minute Version

• 5 min hook

• 15 min mic type intro

• 10 min polar pattern intro

• 10 min activity

5 min exit ticket

• 60-Minute Version

• 10 min intro

• 20 min direct instruction

• 10 min demonstration

• 15 min worksheet

• 5 min wrap-up

90-Minute Version

• 10 min hook

• 25 min instruction

• 15 min demonstrations

• 20 min application or lab

• 10 min assessment

• 10 min wrap-up

27. Teacher Talking Points

These are exact lines teachers can use:

• “A microphone is where sound becomes signal.”

• “Microphone choice matters before mixing even starts.”

• “Different microphones are built for different strengths.”

• “Dynamic and condenser microphones are not interchangeable in every situation.”

• “Polar pattern tells you where the microphone listens best.”

• “Direction matters because microphones do not hear every angle the same way.”

• “The recording chain starts with source capture.”

• “Professional engineers respect microphones as both creative and technical tools.”

28. Common Real-World Studio Connections

Use these to make the lesson relevant.

• A studio vocal may often use a condenser microphone in a controlled room.

• A live handheld vocal often uses a dynamic microphone.

• A podcast setup may use either dynamic or condenser depending on the environment and goal.

• A poor microphone choice can increase noise, poor tone, or room problems.

• A cardioid microphone can help focus on the source and reject some rear sound.

• Condenser microphones often require phantom power from the interface or mixer.

• Microphone handling affects noise, setup speed, and equipment life.

29. Teacher Notes on Classroom Management

Because this chapter may involve real microphones:

• demonstrate before students touch equipment

• do not let students tap microphone capsules unnecessarily

• use stands whenever possible

• prevent swinging or careless handling

• supervise cable connection and disconnection

• reinforce that microphones are tools, not props

• keep the lesson practical and scenario-based

30. Mini-Lesson on Professional Relevance

Include this as a required short section.

Key Points

• microphone choice is one of the first major recording decisions

• capture quality affects everything later

• good source recording saves time in editing and mixing

• professionals understand both what the mic does and when to use it

Suggested Teacher Line

“A strong recording starts before the plugins. It starts with the right microphone and the right capture decision.”

31. Accommodations / Inclusion

For students needing extra support

• use labeled microphone photos

• compare only dynamic and condenser first

• use simple, repeated examples

• rely on visuals for polar patterns

• allow partner discussion for scenario choices

For advanced students

• preview large- vs small-diaphragm condenser differences

• introduce proximity effect at a basic level

• discuss why some mics fit specific instruments better

• compare live vocal mics vs studio vocal mics in more detail

For general accessibility

• teach verbally and visually

• use charts and comparisons

• connect each concept to a real scenario

repeat key distinctions often

32. Homework Options

Option 1

• Write a paragraph explaining the difference between dynamic and condenser microphones.

Option 2

• Describe one recording situation where microphone choice would matter and explain why.

Option 3

• Explain what a polar pattern is and why it matters.

33. Extension Activities

For stronger groups or longer periods:

• compare more mic application examples

• analyze popular studio photos and identify possible mic choices

• preview microphone placement concepts

• discuss how room sound affects microphone results

• compare stage vocal vs studio vocal needs

• introduce pop filters and basic vocal recording accessories

34. Instructor Quick Reference Sheet

Most Important Terms

• microphone

• transducer

• dynamic microphone

• condenser microphone

• ribbon microphone

• polar pattern

• cardioid

• omnidirectional

• bidirectional

• phantom power

• signal path

Most Important Distinction

More sensitive does not automatically mean better for every situation.

Most Important Studio Link

• The microphone is one of the first and most important sound-shaping decisions in the recording chain.

Most Important Professional Link

• Proper mic selection and handling are part of real studio professionalism.

35. What Mastery Looks Like

A student has mastered Chapter 5 when they can:

• explain what a microphone does

• identify main microphone categories

• distinguish dynamic and condenser at a beginner level

• explain what a polar pattern is

• connect microphone choice to source and environment

• identify the microphone’s place in the signal path

• describe why handling and setup matter
