FXA Instructor Guide

Chapter 4: Connectivity

Chapter Title

Connectivity

Recommended Grade Levels

High School

upper middle school with instructor guidance

Beginner college / Workforce Readiness Level

Course Placement

This chapter should be taught after:

• Chapter 1: Sound & Hearing

• Chapter 2: Basic Electronics

• Chapter 3: Digital Audio

This chapter prepares students for:

• microphones

• recording setup

• interfaces

• mixers

• monitors

• signal flow

• studio troubleshooting

• routing

• professional setup habits

Connectivity is where many beginner problems happen. Students often blame software, speakers, or microphones when the real issue is simply a wrong cable, wrong port, wrong direction, or incomplete connection.

1. Chapter Purpose

This chapter introduces students to the practical world of audio connections and teaches them how audio equipment communicates through physical connection paths.

Students will learn:

• what connectivity means in audio

• why correct connections matter

• how signals move between devices

• the difference between inputs and outputs

• common audio connectors and cable types

• balanced vs unbalanced concepts at a beginner level

• analog and digital connection awareness

• safe and professional cable handling

• how connectivity affects troubleshooting

The goal is not just memorization. The goal is to help students become confident, careful, and professional when setting up audio systems.

2. Big Ideas

By the end of this chapter, students should understand these core ideas:

• Audio systems depend on correct physical and signal connections.

• Inputs and outputs must be matched correctly.

• Different connectors serve different functions.

• Not every cable is interchangeable.

• Signal type and connection type both matter.

• Balanced and unbalanced connections behave differently.

• Analog and digital devices may connect in different ways.

• Good connectivity practices reduce noise, confusion, and setup mistakes.

• Troubleshooting often begins with checking the connection path.

3. Essential Questions

Use these throughout the lesson:

• What does connectivity mean in audio systems?

• Why are correct connections so important in recording and playback?

• What is the difference between an input and an output?

• Why can’t every cable be used for every device?

• What are the most common connectors in audio workflows?

• What is the difference between balanced and unbalanced connections?

• How does connection knowledge help with troubleshooting?

• Why is cable handling part of professionalism?

4. Learning Objectives

Students will be able to:

1. Define connectivity in an audio context.

2. Explain why correct device connections matter.

3. Identify the difference between inputs and outputs.

4. Recognize common audio connectors and cable types.

5. Explain that different cables serve different purposes.

6. Describe the beginner-level difference between balanced and unbalanced connections.

7. Identify simple analog and digital connection examples.

8. Apply connection knowledge to basic studio setups.

9. Demonstrate safe cable and connector handling.

10 Use connectivity vocabulary accurately in class discussion and written work.

5. Standards / Program Alignment

This chapter supports foundational competencies in:

• audio engineering fundamentals

• technical studio literacy

• signal flow readiness

• troubleshooting and setup skills

• career and technical education

• digital and analog media system awareness

• professional equipment handling

6. Estimated Time

Standard Delivery

• 1 class period: 60–90 minute overview

• 2 class periods: ideal for instruction + cable and connector demos

• 3 class periods: ideal for instruction + activity + lab + assessment

Suggested Breakdown

Option A: Single Block

• hook / intro – 10 min

• direct instruction – 25 min

• connector / cable demo – 15 min

• guided activity – 20 min

• wrap-up / exit ticket – 10 min

Option B: Two-Day Delivery

Day 1

• what connectivity means

• inputs and outputs

• common cable and connector types

Day 2

• balanced vs unbalanced

• analog vs digital connection awareness

• troubleshooting

• worksheet / assessment

Option C: Three-Day Delivery

Day 1

• vocabulary and connection basics

Day 2

• cable and connector identification

• setup examples

Day 3

• troubleshooting exercises

• safety and handling

• assessment / wrap-up

7. Teacher Preparation Checklist

Before teaching this chapter, the instructor should:

• review the lesson video or chapter content

• gather real cables and connectors if possible

• prepare images of common audio connections

• review inputs and outputs on classroom gear

• prepare a simple signal path example

• prepare board notes showing direction of signal flow

• check that demo equipment is safe and working

• prepare student worksheets

• review answer key and activities

• be ready to demonstrate correct and incorrect connection choices

8. Materials Needed

Required

• projector or display

• whiteboard / markers

• chapter worksheet

• student notes

• lesson assessment

Recommended

• XLR cable

• 1/4-inch cable

• TRS connector example

• TS connector example

• USB cable

• headphone connector example

• audio interface

• microphone

• speakers or headphones

• mixer or controller

• labeled connector visuals

• signal flow diagram

9. Academic Vocabulary

Students should learn and use these terms accurately:

• connectivity

• connection

• cable

• connector

• adapter

• input

• output

• signal path

• routing

• balanced

• unbalanced

• analog connection

• digital connection

• XLR

• TRS

• TS

• USB

• interface

• port

• jack

• plug

• stereo

• mono

• signal type

• noise

• grounding

10. Key Content for the Instructor

A. What Is Connectivity?

Connectivity refers to the way audio devices are physically and functionally linked so signal can move correctly between them.

Teacher talking point

“Connectivity is not just plugging things in. It is making the right connections in the right direction for the right purpose.”

Students should understand that a working studio depends on correct connectivity just as much as good software or expensive equipment.

B. Why Connectivity Matters

Even if every piece of gear has power, the system will not work properly unless the connections are correct.

Connectivity affects:

• whether signal reaches the next device

• whether sound is clean or noisy

• whether the correct input or output is being used

• whether devices can communicate properly

• whether troubleshooting is fast or frustrating

Teacher talking point

“A wrong connection can make a good system act broken.”

C. Inputs and Outputs

This is one of the most important concepts in the chapter.

Input

Where signal enters a device.

Output

Where signal leaves a device.

Examples

• microphone into interface input

• interface output into speaker input

• keyboard output into mixer input

• headphone output into headphones

Teacher talking point

“If students confuse inputs and outputs, setup problems happen immediately.”

D. Common Connector Types

Students should begin recognizing common connectors without needing full advanced technical depth yet.

XLR

Commonly used for microphones and many balanced audio connections.

1/4-inch connectors

Used in many audio systems. These may appear as:

• TS

• TRS

TS

• Often used for simple unbalanced mono connections such as some instrument cables.

TRS

• Can be used for balanced mono connections or stereo connections depending on the application.

USB

• Used for digital communication and device connection, especially between interfaces, controllers, and computers.

Headphone connectors

Used for playback monitoring.

Teacher talking point

“The connector shape alone is not enough. Students must also understand what the connection is being used for.”

E. Not Every Cable Does the Same Job

Students often assume that if a cable fits, it must be correct. That is a major beginner mistake.

Different cables are used for different purposes:

• microphone signal

• instrument signal

• line-level connection

• headphone connection

• digital communication

• data transfer

Teacher talking point

“Just because it plugs in does not mean it is the right connection.”

F. Balanced vs Unbalanced Connections

Keep this practical and beginner-friendly.

Balanced Connections

Designed to help reduce noise over longer runs and in professional setups.

Unbalanced Connections

More basic signal path style, often acceptable in shorter or simpler connections but generally more vulnerable to noise in some situations.

Practical examples

• XLR is commonly associated with balanced connections

• TRS can often be balanced depending on use

• TS is commonly unbalanced

Teacher talking point

“Balanced connections help professional systems stay cleaner and more reliable.”

Avoid overloading students with electrical theory. Focus on application.

G. Analog vs Digital Connections

Students should understand that some cables carry analog audio signal, while others may carry digital information or data.

Analog examples

• XLR mic cable

• TRS line connection

• TS instrument cable

Digital examples

• USB connection to a computer

Teacher talking point

“Some connections carry audio signal directly. Some help devices communicate digitally.”

This gives students early awareness of connection purpose.

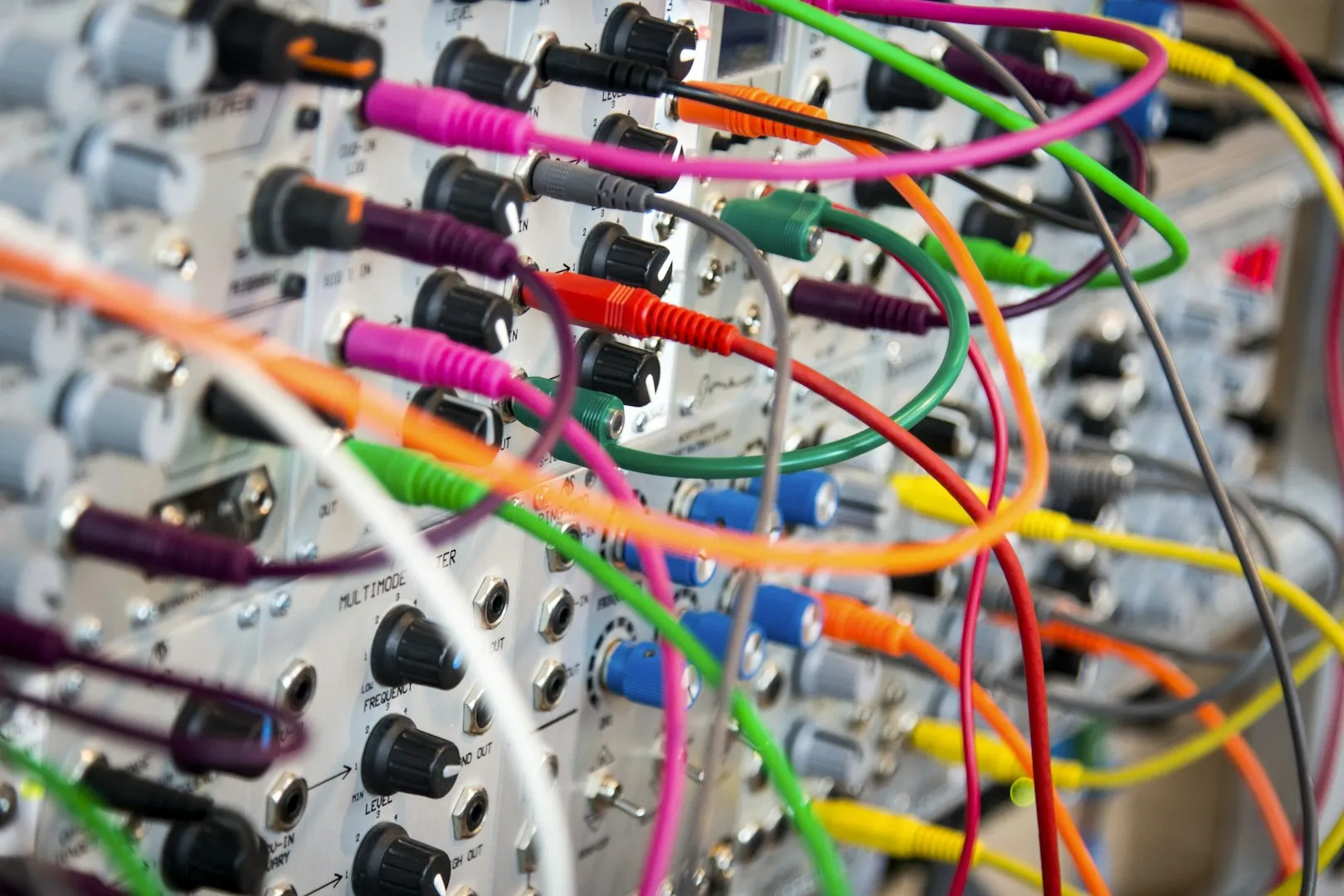

H. Ports, Jacks, and Plugs

Clarify this basic language.

• Port / jack = where the cable connects on the device

• Plug / connector end = the part attached to the cable that goes into the jack

Teacher talking point

“Knowing the parts helps students communicate clearly when troubleshooting.”

I. Stereo vs Mono Awareness

At a beginner level:

• mono = one signal path

• stereo = two-channel left/right playback image

Students do not need deep routing theory yet, but they should begin seeing that not every connection carries the same kind of signal structure.

J. Adapters and Caution

Adapters can be useful, but students should not assume adapters solve every compatibility problem correctly.

Teacher talking point

“An adapter may make something fit, but it does not guarantee the connection is correct for signal type, level, or purpose.”

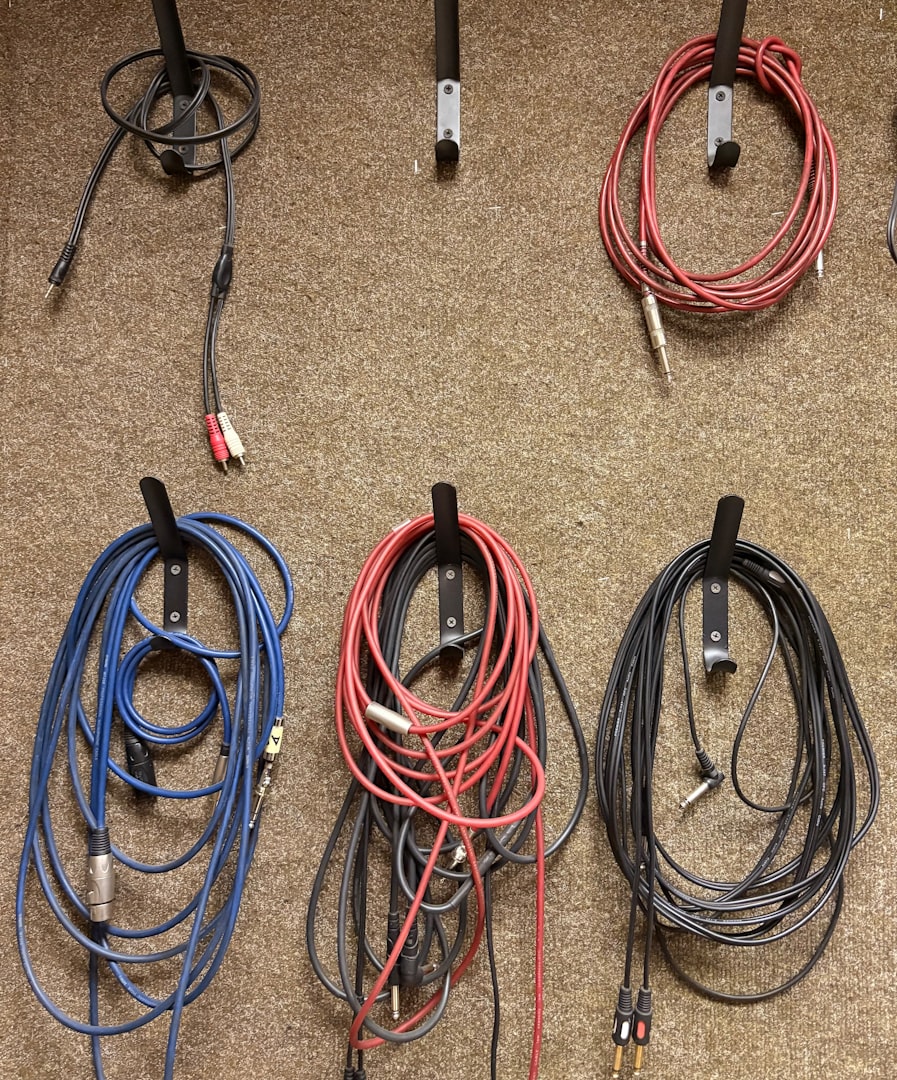

K. Cable Handling and Professionalism

Students must learn that cable handling is part of studio professionalism.

Good habits include:

• do not yank cables

• do not sharply bend connectors

• do not force a plug

• coil cables properly

• store cables carefully

• label when needed

• check for damage

• keep connectors clean and protected

Teacher talking point

“How students handle cables often shows how professionally they handle the studio.”

L. Why Connectivity Matters in Troubleshooting

A large percentage of beginner setup problems come from connection issues such as:

• wrong cable

• wrong port

• loose connection

• output plugged into output

• input plugged into input incorrectly

• broken cable

• incomplete signal path

• wrong direction of signal flow

Teacher talking point

“Before blaming the software, check the path.”

11. Instructor Script / Teaching Flow

Use this as a real classroom delivery guide.

Lesson Opening Hook

Start with this question:

“Have you ever had gear turned on and still gotten no sound?”

Let students answer.

Then say:

“Today we’re learning connectivity—the part of audio that makes signal actually move from one device to another. This is where a lot of real studio success or failure happens.”

Direct Instruction Part 1 – What Connectivity Means

Explain that connectivity is about:

• correct physical connection

• correct signal direction

• correct device relationship

Teacher line

“Audio systems only work well when the path makes sense.”

Direct Instruction Part 2 – Inputs and Outputs

Draw two simple examples:

• mic into interface input

• interface output into monitor input

Ask:

• where does signal enter?

• where does it leave?

• Reinforce the concept repeatedly.

Teacher line

“If an output sends signal out, it should usually feed an input that receives it.”

Direct Instruction Part 3 – Connector Identification

Show real connectors or visuals:

• XLR

• TS

• TRS

• USB

• headphone plug

Have students describe what they notice and where they have seen them before.

Teacher line

“Recognition is the first step. Correct application is the next step.”

Direct Instruction Part 4 – Balanced and Unbalanced

Explain simply:

• some connection types are more noise-resistant

• professional setups often prefer balanced paths where possible

Do not go too deep unless students are ready.

Direct Instruction Part 5 – Troubleshooting Through Connectivity

Present a simple path:
Mic → XLR → Interface → USB → Computer → Interface Output → Speakers

Ask:

• where could this fail?

• what would you check first?

This prepares students for real-world thinking.

12. Recommended Board Notes

Write these on the board or in slides.

Core Definitions

• Connectivity = how devices are linked so signal moves correctly

• Input = where signal enters

• Output = where signal leaves

• XLR = common mic / balanced connection

• TS = common unbalanced connection

• TRS = often balanced mono or stereo depending on use

• USB = common digital data connection

• Balanced = designed to reduce noise

• Unbalanced = more basic connection path, often more noise-sensitive

• Mono = one signal path

• Stereo = left / right two-channel playback image

Core Studio Reminder

Not every cable that fits is the right cable.

13. Suggested Demonstrations

Demo 1: Connector Identification

Show 3–5 connectors and have students identify:

• name

• likely use

• whether it is likely analog or digital

Demo 2: Input vs Output

Use an interface or speaker and point out actual ports.

Ask:

• Which one is the input?

• Which one is the output?

• What would happen if you connected output to output?

Demo 3: Wrong Cable Example

Show two cables that look similar enough to confuse beginners.

Discuss why choosing the wrong one causes problems.

Demo 4: Full Path Walkthrough

Build or show this path:

Microphone → XLR → Interface → USB → Computer → Interface Outputs → Monitors

Have students describe each connection step.

Demo 5: Cable Handling

Quickly demonstrate:

• bad handling

• correct coiling

• safe unplugging from the connector, not by the cable

14. Guided Discussion Questions

Use these throughout the lesson:

1. What does connectivity mean in an audio system?

2. Why is it important to know the difference between an input and an output?

3. Why can’t every cable be used for every job?

4. Why do balanced connections matter in professional setups?

5. How can USB be different from XLR in purpose?

6. Why is cable handling part of professionalism?

7. Why should troubleshooting begin with the connection path?

8. What problems happen when students assume “if it fits, it works”?

15. Common Student Misconceptions

Misconception 1

“If the plug fits, it must be correct.”
Correction: Physical fit does not guarantee correct signal type or correct use.

Misconception 2

“Every 1/4-inch cable does the same thing.”
Correction: TS and TRS may look similar but are not always used the same way.

Misconception 3

“If gear powers on, connectivity must be fine.”
Correction: A system can have power and still have bad or missing signal connections.

Misconception 4

“USB and XLR are basically interchangeable because they both connect devices.”
Correction: They serve very different purposes.

Misconception 5

“Troubleshooting starts with blaming the software.”
Correction: Many problems start with the physical connection path.

16. Differentiation / Support Strategies

For Struggling Learners

• use real cables and real gear whenever possible

• repeat input vs output often

• focus on a few key connectors first

• use labeled visuals

• have students physically trace signal paths

For Advanced Learners

• introduce balanced line discussion in more detail

• preview patching and routing ideas

• discuss why TRS can mean different things in different contexts

• compare analog audio connections with digital data connections more deeply

For English Language Learners

• preteach connector names

• use visuals with labels

• allow partner identification activities

• reinforce vocabulary through repetition and physical examples

17. Classroom Activity Options

Activity A: Connector Match

Students match connector names to pictures or real cables:

• XLR

• TS

• TRS

• USB

• headphone connector

Activity B: Input or Output?

Give students a list of ports and ask them to label each:

• microphone input

• headphone output

• monitor output

• line input

• USB port

Activity C: Correct the Path

Give students a wrong setup diagram and ask them to fix it.

Example:
Speaker output → speaker output
Mic input → mic input
Have them rewrite the correct signal direction.

Activity D: Cable Use Sort

Students sort cable types by likely use:

• microphone

• instrument

• headphones

• computer connection

• speaker / line-level connection

Activity E: Balanced or Unbalanced Intro

Students sort a few examples:

• XLR

• TS

• TRS

Keep it beginner-friendly and emphasize “commonly used as,” not “always.”

18. Hands-On Lab

Lab Title

Building a Basic Audio Connection Path

Objective

Students identify and build a simple signal path using correct cable and connector choices.

Procedure

1. Identify the sound source device.

2. Identify where the signal enters the next device.

3. Choose the correct cable type.

4. Connect the system in the correct order.

5. Identify which connections are analog and which are digital.

6. Explain where signal enters and exits.

7. Check the full path for logic and completion.

Sample Path

Microphone → XLR → Interface → USB → Computer → Interface Outputs → Speakers / Headphones

Student Output

Students complete a chart:

Step

Connector / Cable Used

Input or Output?

Analog or Digital?

Purpose

Microphone to interface

__________

__________

__________

__________

Interface to computer

__________

__________

__________

__________

Interface to speakers

__________

__________

__________

__________

19. Worksheet Content Guidance

Your Chapter 4 worksheet pack should eventually include:

• guided notes

• vocabulary worksheet

• input vs output worksheet

• cable and connector identification worksheet

• balanced vs unbalanced worksheet

• analog vs digital connection worksheet

• signal path worksheet

• troubleshooting worksheet

• cable handling / professionalism worksheet

• exit ticket

• teacher answer key

20. Exit Ticket

Use this before students leave class.

Exit Ticket Questions

1. What does connectivity mean in audio?

2. What is the difference between an input and an output?

3. Why can’t every cable be used for every device?

4. What is one difference between balanced and unbalanced connections?

5. Why should troubleshooting begin with the connection path?

21. Chapter 4 Quiz Sample

If you need a teacher backup question pool, here is a sample set.

Multiple Choice

1. Connectivity in audio refers to:
A. only turning on equipment
B. how devices are linked so signal moves correctly
C. the loudness of a speaker
D. a plugin setting

2. An input is:
A. where signal leaves a device
B. where signal enters a device
C. always a headphone port
D. a file format

3. An output is:
A. where signal leaves a device
B. where signal enters a device
C. always a mic jack
D. a converter type

4. Which connector is commonly used for microphones?
A. XLR
B. USB flash drive
C. RCA video cable only
D. power strip

5. Which statement is correct?
A. Every cable that fits is correct
B. All 1/4-inch cables do the same thing
C. Different cables serve different purposes
D. USB and XLR do the same job

6. Balanced connections are commonly valued because they:
A. make music faster
B. reduce noise in many professional situations
C. remove the need for interfaces
D. replace microphones

7. Which is commonly associated with an unbalanced connection?
A. TS
B. XLR only for power
C. USB data drive
D. monitor stand

8. Which connection is commonly digital rather than analog audio?
A. USB
B. XLR mic cable
C. TS instrument cable
D. headphone analog cable

9. A major beginner troubleshooting step is to:
A. buy new speakers immediately
B. blame the DAW first
C. check the connection path first
D. increase volume only

10. Why is cable handling important?
A. it affects professionalism and equipment reliability
B. it changes the song tempo
C. it removes the need for troubleshooting
D. it changes bit depth

22. Chapter 4 Quiz Answer Key

1. B

2. B

3. A

4. A

5. C

6. B

7. A

8. A

9. C

10. A

23. Answer Key Explanations

1. Connectivity

Connectivity is about how devices are linked so signal moves properly.

2. Input

Signal enters through an input.

3. Output

Signal leaves through an output.

4. XLR

XLR is a common microphone connection type.

5. Cable purpose

Different cables are designed for different jobs.

6. Balanced

Balanced connections are often preferred because they help reduce noise.

7. TS

TS is commonly associated with unbalanced connections.

8. USB

USB is commonly used for digital communication and data connection.

9. Troubleshooting

Checking the connection path first solves many beginner problems.

10. Professionalism

Good cable handling protects equipment and supports professional workflow.

24. Short Response Assessment

Prompt

Explain why connectivity knowledge is essential in audio engineering.

Strong Response Should Include

• devices must be connected correctly

• inputs and outputs must be matched

• different cables have different purposes

• signal path must be complete

• connectivity helps with troubleshooting

• proper handling supports professionalism

25. Performance Task

Assignment

Have students examine a simple studio setup and explain:

• what each connection does

• which cables are being used

• which ports are inputs and outputs

• whether the setup makes sense

• where problems could occur

Example Prompt

A microphone connects to an interface with XLR, the interface connects to a computer with USB, and the interface sends signal to speakers through its outputs. Explain why each connection is used and identify one possible mistake that would stop the system from working.

26. Grading Rubric

Participation / Discussion – 20 points

• 18–20: engaged, accurate vocabulary, strong participation

• 14–17: mostly engaged

• 10–13: limited participation

• 0–9: off task or absent

Worksheet – 25 points

• 23–25: accurate and complete

• 18–22: mostly accurate

• 12–17: partial understanding

• 0–11: weak or incomplete

Quiz – 25 points

• based on total correct

Lab / Application Activity – 30 points

• 27–30: strong understanding of connector choice, signal direction, and setup logic

• 21–26: mostly correct

• 15–20: basic understanding

• 0–14: minimal or inaccurate

27. Pacing Guide for Teachers

45-Minute Version

• 5 min hook

• 15 min input / output and connector intro

• 10 min cable examples

• 10 min activity

• 5 min exit ticket

60-Minute Version

• 10 min intro

• 20 min direct instruction

• 10 min demo

• 15 min worksheet

• 5 min wrap-up

90-Minute Version

• 10 min hook

• 25 min instruction

• 15 min demonstrations

• 20 min lab / activity

• 10 min assessment

• 10 min wrap-up

28. Teacher Talking Points

These are exact lines teachers can use:

• “Connectivity is about making the right connection for the right purpose.”

• “If signal leaves an output, it usually needs to arrive at an input.”

• “Not every cable that fits is the correct cable.”

• “Recognition of connectors is useful, but correct application matters more.”

• “Balanced connections help reduce noise in many professional setups.”

• “USB often handles digital device communication, while XLR commonly carries analog mic signal.”

• “Many studio problems start with wrong or incomplete connections.”

• “Professional engineers respect cables, connectors, and signal path.”

29. Common Real-World Studio Connections

Use these to make the lesson relevant.

• A microphone commonly connects to an interface with XLR.

• The interface often connects to the computer with USB.

• The interface outputs feed studio monitors or headphones.

• Wrong connection direction can stop the whole system.

• Students often confuse headphone outputs with line outputs.

• Loose cables are one of the simplest but most common reasons for “no sound.”

• Knowing connector types speeds up setup and troubleshooting.

30. Teacher Notes on Classroom Management

Because this chapter uses real gear and cables:

• demonstrate before passing equipment around

• do not let students force connectors

• remind students to unplug by the connector, not by pulling the cable

• keep cables untangled and organized

• use labeled stations if possible

• supervise any live demo connections

• reinforce correct handling every time

31. Mini-Lesson on Professional Relevance

Include this as a required short section.

Key Points

• connectivity is a daily part of studio work

• setup mistakes waste time and create frustration

• understanding ports, cables, and signal direction builds confidence

• professional engineers solve problems quickly because they understand the path

Suggested Teacher Line

“A creative session can stop instantly if the connections are wrong. Connectivity knowledge protects the workflow.”

32. Accommodations / Inclusion

For students needing extra support

• use large visuals of connectors

• reduce the number of connector types introduced at once

• use hands-on matching activities

• give guided notes with labeled images

• repeat input / output language often

For advanced students

• go deeper into TRS use cases

• preview patching and routing concepts

• compare additional digital connection types later

• discuss why certain professional systems prefer balanced paths

For general accessibility

• teach visually and verbally

• allow partner identification work

• use physical examples when possible

• repeat practical applications often

33. Homework Options

Option 1

Write a paragraph explaining the difference between an input and an output.

Option 2

List three common audio connectors and explain one likely use for each.

Option 3

Explain why “if it fits, it works” is a bad rule in audio connectivity.

34. Extension Activities

For stronger groups or longer periods:

• compare more connector types

• trace a full recording setup from mic to monitor

• preview patch bays and routing

• compare stereo headphone connections vs balanced line connections

• analyze a studio photo and identify visible connections

• create a troubleshooting checklist for setup problems

35. Instructor Quick Reference Sheet

Most Important Terms

• connectivity

• input

• output

• connector

• cable

• XLR

• TS

• TRS

• USB

• balanced

• unbalanced

• signal path

Most Important Distinction

A cable fitting physically does not guarantee it is the correct connection.

Most Important Studio Link

Correct connectivity is the foundation of successful setup, routing, and troubleshooting.

Most Important Professional Link

How students handle cables and connectors reflects studio professionalism.

36. What Mastery Looks Like

A student has mastered Chapter 4 when they can:

• explain what connectivity means in audio

• identify inputs and outputs correctly

• recognize common connector types

• explain that different cables have different purposes

• describe balanced vs unbalanced at a beginner level

• trace a simple signal path logically

• identify likely connection problems in a setup

• handle cables and connectors professionally
