FXA Instructor Guide

Chapter 3: Digital Audio

Chapter Title

Digital Audio

Recommended Grade Levels

• High School

• Upper middle school with instructor guidance

• Beginner college / Workforce Readiness Level

Course Placement

This chapter should be taught after:

• Chapter 1: Sound & Hearing

• Chapter 2: Basic Electronics

It serves as the bridge between:

• sound as vibration

• audio as electrical signal

• audio as digital information inside computers and recording systems

This chapter prepares students for:

• DAW use

• digital recording

• editing

• audio interfaces

• file formats

• bit depth and sample rate concepts

• computer-based music production

• modern recording workflows

1. Chapter Purpose

This chapter introduces students to the fundamentals of digital audio and explains how sound becomes data that can be recorded, edited, stored, and played back using modern technology.

Students will learn:

• what digital audio is

• how analog sound becomes digital information

• what sampling is

• what sample rate means

• what bit depth means

• why digital audio matters in modern music production

• how digital systems affect quality, workflow, and storage

The goal is not to overwhelm students with engineering math. The goal is to help them understand the practical concepts behind digital recording so they can use audio tools intelligently and confidently.

2. Big Ideas

By the end of this chapter, students should understand these core ideas:

• Modern audio production relies heavily on digital systems.

• Sound must be converted into digital information for computer recording.

• Sampling captures snapshots of audio over time.

• Sample rate affects how often audio is measured.

• Bit depth affects dynamic detail and available resolution.

• Analog and digital audio are related, but not the same thing.

• Audio interfaces and converters help move audio between the analog and digital worlds.

• Digital audio allows editing, storage, transfer, and playback in ways that transformed music production.

3. Essential Questions

Use these throughout the lesson:

• What is digital audio?

• How does sound become data?

• What is sampling?

• Why does sample rate matter?

• Why does bit depth matter?

• What is the difference between analog and digital audio?

• Why is digital audio important in modern recording and production?

• How do digital systems make audio work easier, faster, and more flexible?

4. Learning Objectives

Students will be able to:

1. Define digital audio in simple, accurate terms.

2.0Explain the difference between analog and digital audio.

3. Describe how sound is converted into digital information.

4. Define sampling and explain its purpose.

5. Explain sample rate in practical terms.

6. Explain bit depth in practical terms.

7. Describe the role of analog-to-digital and digital-to-analog conversion.

8. Connect digital audio concepts to DAWs and recording systems.

9. Use key digital audio vocabulary correctly.

10. Apply digital audio concepts to real studio workflows and troubleshooting situations.

5. Standards / Program Alignment

This chapter supports foundational competencies in:

• audio engineering fundamentals

• digital media literacy

• studio technology understanding

• STEM and applied science integration

• DAW and recording workflow readiness

• technical communication

• career and technical education pathways

6. Estimated Time

Standard Delivery

• 1 class period: 60–90 minute overview

• 2 class periods: ideal for instruction + digital recording examples

• 3 class periods: ideal for instruction + demonstration + worksheet / lab + assessment

Suggested Breakdown

Option A: Single Block

• hook / intro – 10 min

• direct instruction – 25 min

• digital audio demo – 15 min

• activity / guided practice – 20 min

• wrap-up / exit ticket – 10 min

Option B: Two-Day Delivery

Day 1

• analog vs digital

• what sampling is

• intro to sample rate

Day 2

• bit depth

• converters / interface role

• DAW relevance

• assessment / worksheet / discussion

Option C: Three-Day Delivery

Day 1

• overview and vocabulary

Day 2

• sampling, sample rate, bit depth

Day 3

• digital workflow, conversion, file use, practice activity, assessment

7. Teacher Preparation Checklist

Before teaching this chapter, the instructor should:

• review the lesson video or chapter content

• prepare a simple analog vs digital explanation

• prepare board visuals for waveform sampling

• gather example audio files if possible

• prepare a DAW or audio software demo if available

• prepare a simple image or slide showing sample points

• review vocabulary terms

• prepare student worksheets or digital handouts

• review assessment and answer key

• be ready to connect the topic to real-world recording

8. Materials Needed

Required

• projector or display

• whiteboard / markers

• student worksheets or notes

• lesson assessment

• digital audio visuals or diagrams

Recommended

• DAW or recording software

• audio interface

microphone

• speakers or headphones

• waveform image

• sample rate / bit depth visual

• audio file examples such as WAV and MP3

• screen capture of a DAW session

• simple analog-to-digital conversion diagram

9. Academic Vocabulary

Students should learn and use these terms accurately:

• digital audio

• analog audio

• sample

• sampling

• sample rate

• bit depth

• resolution

• converter

• analog-to-digital converter

• digital-to-analog converter

• waveform

• audio data

• recording

• playback

• DAW

• file format

• WAV

• MP3

• latency

• interface

• binary

• dynamic range

10. Key Content for the Instructor

A. What Is Digital Audio?

Digital audio is sound represented as numerical information so that computers and digital devices can record, process, store, and play it back.

Teacher talking point

“Digital audio is what happens when sound is converted into information a computer can understand.”

Students should understand that digital audio is not sound floating in the air. It is a digital representation of sound.

B. Analog vs Digital Audio

This is one of the most important distinctions in the chapter.

Analog Audio

Analog audio is a continuously changing signal that directly represents the original sound wave.

Digital Audio

Digital audio represents sound using measured data points.

Teacher talking point

“Analog is continuous. Digital is measured and stored as data.”

Practical example

• a microphone captures sound as an analog signal

• an interface converts it into digital data

• the DAW records that data

• speakers later convert it back into audible sound

C. Sampling

Sampling is the process of measuring an analog audio signal at repeated moments in time so it can be turned into digital information.

Teacher talking point

“Sampling means taking many quick snapshots of sound so the computer can rebuild it.”

Students do not need to think of sampling as random fragments. It is a structured measurement process.

D. Sample Rate

Sample rate tells us how many times per second the audio is measured.

It is usually expressed in Hz or kHz.

Common examples:

• 44.1 kHz

• 48 kHz

• 96 kHz

Teacher talking point

“The higher the sample rate, the more often the system measures the sound each second.”

Keep it practical. Do not overload students with advanced theory unless needed.

E. Why Sample Rate Matters

Sample rate affects how accurately the system can capture changing audio information.

At a beginner level, students should understand:

• more samples per second means more measurement detail

• professional systems often use standard rates depending on music, video, or production needs

Practical examples

• 44.1 kHz is common in music workflows

• 48 kHz is common in video and media workflows

You may mention higher rates like 96 kHz, but keep the explanation simple.

F. Bit Depth

Bit depth affects how much detail is available in the level or amplitude information of the recording.

Common examples:

• 16-bit

• 24-bit

Teacher talking point

“Bit depth affects how much detail the system can capture in signal level.”

Beginner explanation

More bit depth generally means more available dynamic detail and greater recording flexibility.

Do not turn this into a full math chapter. Students only need the concept first.

G. Why Bit Depth Matters

Bit depth influences the recording’s available dynamic range and level precision.

At a practical classroom level:

• 16-bit is common for finished consumer delivery

• 24-bit is common for recording and production

Teacher talking point

“Bit depth matters because recording needs headroom and detail, not just loudness.”

H. Analog-to-Digital Conversion

Before a computer can record sound, analog audio must be converted into digital data.

This process is handled by an analog-to-digital converter (ADC).

Example path

Voice → microphone → analog signal → audio interface / converter → digital data in DAW

Teacher talking point

“The converter is the bridge between the real-world signal and the computer.”

I. Digital-to-Analog Conversion

For students to hear sound from digital devices, digital data must be converted back into analog audio.

This is handled by a digital-to-analog converter (DAC).

Example path

DAW playback → digital data → converter → speaker / headphone system → audible sound

Teacher talking point

“Recording into the computer and hearing back from the computer both depend on conversion.”

J. Why Digital Audio Changed the Industry

Digital audio transformed production by making it easier to:

• record multiple takes

• edit precisely

• save projects

• copy without generation loss in normal digital duplication

• transfer files quickly

• work inside DAWs

• collaborate remotely

• store large amounts of audio

Teacher talking point

“Digital audio made music production faster, more flexible, and more accessible.”

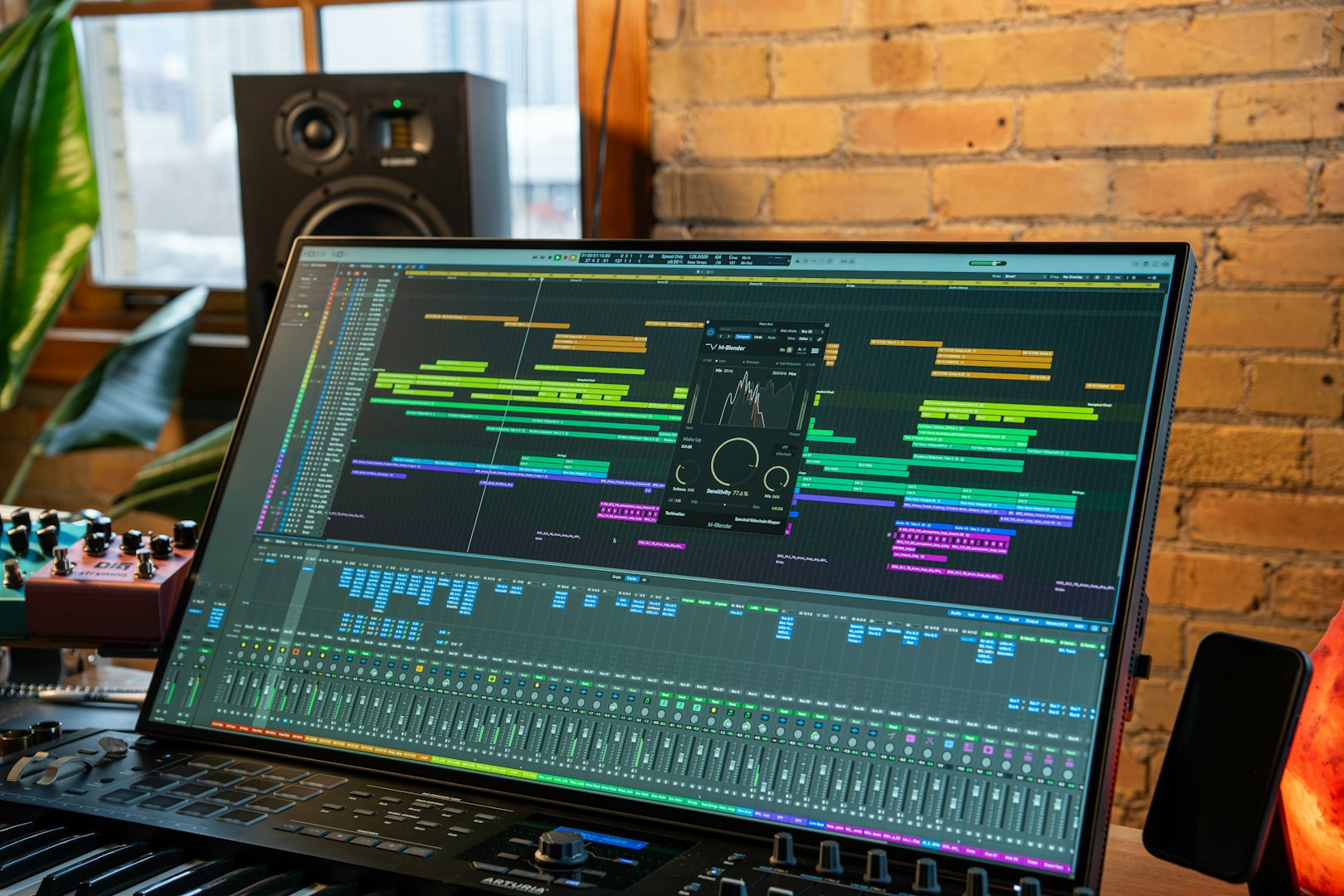

K. DAWs and Digital Workflow

A DAW stores and manipulates digital audio.

Students should connect Chapter 3 directly to tools they may already know:

• Pro Tools

• Logic Pro

• FL Studio

• Ableton Live

• GarageBand

• BandLab

Teacher talking point

“When students record in a DAW, they are working with digital audio data.”

L. File Formats

Introduce file formats at a simple level.

WAV

Often uncompressed or minimally processed in common classroom use and associated with higher-quality production workflows.

MP3

Compressed format often used for smaller file sizes and convenient playback / sharing.

Keep it basic. The deeper file-format discussion can come later.

M. Latency

You may introduce latency in a simple way:
Latency is a short delay between input and output in digital systems.

Teacher talking point

“Digital systems are powerful, but they can introduce delay if the setup is not optimized.”

This is a useful preview for later studio workflow chapters.

N. Why Digital Audio Matters in Audio Engineering

Understanding digital audio helps students:

• record more intelligently

• choose basic session settings

• understand interfaces and DAWs

• avoid confusion around sample rate and bit depth

• communicate more professionally

• troubleshoot playback and recording problems

• understand why files and sessions behave differently

11. Instructor Script / Teaching Flow

Use this as a real classroom delivery guide.

Lesson Opening Hook

Start with this question:

“When you record your voice into a computer, how does that sound become something the computer can store and edit?”

Let students answer first.

Then say:

“Today we’re learning how sound becomes digital audio, which is the foundation of nearly every modern recording workflow.”

Direct Instruction Part 1 – Bridge from Earlier Chapters

Review quickly:

• Chapter 1: sound is vibration

• Chapter 2: sound can become an electrical signal

Then bridge into Chapter 3:

• computers do not store air vibration directly

• they store digital information based on the signal

Teacher line

“First sound is physical. Then it becomes signal. Then it becomes data.”

Direct Instruction Part 2 – Analog vs Digital

Draw or show two concepts:

• continuous waveform

• measured sample points

Explain:

• analog = continuous

• digital = measured and stored

Ask:

• Which one sounds more like a flowing line?

• Which one depends on repeated measurement?

Direct Instruction Part 3 – Sampling

Explain that the system measures audio many times per second.

Use a visual if possible.

Teacher line

“Digital audio works because the system samples the signal fast enough to represent it accurately.”

Ask:

• What would happen if the system measured too slowly?
Guide students toward the idea that detail would be reduced.

Direct Instruction Part 4 – Sample Rate and Bit Depth

Keep this simple and clean.

Sample Rate

How often the signal is measured.

Bit Depth

How much detail is available for level information.

Teacher line

“Sample rate is about how often. Bit depth is about how much level detail.”

This distinction is one of the most important in the chapter.

Direct Instruction Part 5 – Conversion and DAWs

Explain:

• analog-to-digital conversion happens on the way into the computer

• digital-to-analog conversion happens on the way out to speakers or headphones

Use a simple chain:
Voice → Mic → Interface → DAW → Interface → Speakers

Ask:

• Where does the audio become digital?

• Where does it become audible again?

12. Recommended Board Notes

Write these on the board or in slides.

Core Definitions

• Digital audio = sound represented as data

• Analog audio = continuously changing signal

• Sampling = measuring audio over time

• Sample rate = how many measurements per second

• Bit depth = amount of level detail

• ADC = analog-to-digital converter

• DAC = digital-to-analog converter

• DAW = software used to record and edit digital audio

Core Studio Reminder

Sample rate and bit depth are not the same thing.

13. Suggested Demonstrations

Demo 1: DAW Recording Example

If possible, record a quick voice sample in a DAW.

Ask:

• Where did the sound begin?

• What device captured it?

• Why can the computer now display and store it?

Demo 2: Interface as the Bridge

Show an interface and explain:

• it receives analog signal

• it converts for the computer

• it converts again for playback

This helps students understand why the interface matters.

Demo 3: File Comparison

Show students a WAV file and an MP3 file in a folder or DAW environment.

Ask:

• Why might two files hold the same song but behave differently in storage and workflow?

Keep it simple:

• one may be larger and more production-friendly

• one may be smaller and more convenient for sharing

Demo 4: Session Settings

If a DAW is available, show where sample rate and bit depth appear in session or audio settings.

Even if students do not fully master it today, seeing the terms in real software builds familiarity.

14. Guided Discussion Questions

Use these throughout the lesson:

1. What makes digital audio different from analog audio?

2. Why does a computer need sound converted into data?

3. What is sampling in simple terms?

4. Why is sample rate important?

5. Why is bit depth important?

6. Why are converters necessary in a recording setup?

7. Why do modern producers rely so heavily on digital audio?

8. Why might different file formats be useful in different situations?

15. Common Student Misconceptions

Misconception 1

“Digital audio is just sound inside a speaker.”
Correction: Digital audio is data representing sound, not the air vibration itself.

Misconception 2

“Sample rate and bit depth mean the same thing.”
Correction: Sample rate relates to how often audio is measured. Bit depth relates to level detail.

Misconception 3

“A computer records sound by itself.”
Correction: Sound usually must be captured and converted through hardware such as microphones and interfaces.

Misconception 4

“Higher settings always mean better results in every situation.”
Correction: Higher settings can increase detail or workflow demands, but students must learn practical standards and purpose.

Misconception 5

“MP3 and WAV are basically identical in every production situation.”
Correction: They may both contain audio, but they serve different workflow purposes.

16. Differentiation / Support Strategies

For Struggling Learners

• use plain language first

• repeat the analog vs digital distinction often

• use visuals instead of dense theory

• use guided notes

• relate the topic to voice recordings students already know

For Advanced Learners

• introduce binary conceptually

• preview dynamic range in more detail

• discuss why higher sample rates exist

• compare recording settings for music vs video

• connect latency to buffer settings in a future chapter

For English Language Learners

• preteach vocabulary

• use labeled diagrams

• pair terms with visuals

• use repeated real-world examples like phone recording, DAWs, and interfaces

17. Classroom Activity Options

Activity A: Analog vs Digital Sort

Give students terms or examples and have them classify them under:

• analog

• digital

• both / related

Examples:

• microphone signal

• DAW session

• digital audio file

• waveform in air

• converter

• speaker playback

Activity B: Signal-to-Data Sequence

Students place these in correct order:

• sound source

• microphone

• interface / converter

• computer / DAW

• playback system

Then explain what happens at each step.

Activity C: Vocabulary Match

Have students match:

• sample rate

• bit depth

• converter

• DAW

• WAV

• MP3
with simplified definitions.

Activity D: Studio Scenario Discussion

Prompt:
“A student recorded vocals but does not understand why session settings matter.”

Have students discuss why digital settings affect workflow.

18. Hands-On Lab

Lab Title

Tracing the Digital Recording Path

Objective

Students identify how sound moves from the physical world into a digital recording system and back into audible playback.

Procedure

1. Identify the original sound source.

2. Identify the capture device.

3. Identify where analog signal exists.

4. Identify where digital conversion happens.

5. Identify where the DAW stores the audio.

6. Identify how playback returns to audible sound.

Sample Chain

Voice → Microphone → Interface / ADC → DAW → Interface / DAC → Headphones or Speakers

Student Output

Students complete a chart:

Step

Analog, Digital, or Both?

What Happens Here?

Voice in air

__________

________________________

Microphone

__________

________________________

Interface input

__________

________________________

DAW session

__________

________________________

Playback output

__________

________________________

19. Worksheet Content Guidance

Your Chapter 3 worksheet pack should eventually include:

• guided notes

• digital audio vocabulary worksheet

• analog vs digital worksheet

• sampling worksheet

• sample rate and bit depth worksheet

• converter and interface worksheet

• file format worksheet

• DAW workflow worksheet

• application and troubleshooting worksheet

• exit ticket

• teacher answer key

20. Exit Ticket

Use this before students leave class.

Exit Ticket Questions

1. What is digital audio?

2. What is the difference between analog and digital audio?

3. What does sample rate describe?

4. What does bit depth describe?

5. Why are converters important in audio systems?

21. Chapter 3 Quiz Sample

If you need a teacher backup pool, here is a sample set.

Multiple Choice

1. Digital audio is best described as:
A. air moving in a room
B. sound represented as data
C. only speaker vibration
D. a type of microphone

2. Analog audio is:
A. always lower quality
B. continuous signal representation
C. a compressed file
D. only used in video

3. Sampling means:
A. deleting part of a song
B. measuring audio over time for digital conversion
C. turning speakers off
D. changing the volume

4. Sample rate describes:
A. file size only
B. number of measurements per second
C. number of plugins
D. speaker power

5. Bit depth relates most closely to:
A. frequency of cymbals
B. level detail and dynamic resolution
C. headphone comfort
D. microphone type

6. An ADC is used to:
A. turn digital data into speaker cabinets
B. convert analog signal into digital data
C. raise volume automatically
D. create MP3 files only

7. A DAC is used to:
A. convert digital audio back to analog for playback
B. store MIDI notes
C. tune a guitar
D. add reverb

8. Which setting is commonly associated with music production?
A. 44.1 kHz
B. 4 Hz
C. 2-bit
D. 3 kHz only

9. Which statement is correct?
A. Sample rate and bit depth are the same
B. Digital audio removes the need for converters
C. DAWs work with digital audio data
D. Computers record air vibration directly without conversion

10. Why is digital audio important in modern production?
A. It prevents all mistakes
B. It allows recording, editing, storage, and playback in computer systems
C. It removes all latency forever
D. It eliminates the need for microphones

22. Chapter 3 Quiz Answer Key

1. B

2. B

3. B

4. B

5. B

6. B

7. A

8. A

9. C

10. B

23. Answer Key Explanations

1. Digital audio

Digital audio is sound represented as data for computer-based recording and playback.

2. Analog audio

Analog audio is continuous rather than data-based.

3. Sampling

Sampling measures the signal over time for digital representation.

4. Sample rate

Sample rate tells how often the signal is measured each second.

5. Bit depth

Bit depth affects level detail and dynamic precision.

6. ADC

An ADC converts analog audio into digital data.

7. DAC

A DAC converts digital data back into analog audio for playback.

8. Standard rates

44.1 kHz is a common music-related rate.

9. DAW relationship

DAWs work with digital audio data.

10. Modern workflow

Digital audio makes modern recording and editing practical and efficient.

24. Short Response Assessment

Prompt

Explain how sound becomes digital audio inside a modern recording system.

Strong Response Should Include

• sound begins physically

• microphone captures sound

• analog signal is created

• interface / converter changes it into digital data

• DAW records and stores the data

• playback requires digital-to-analog conversion

25. Performance Task

Assignment

Have students explain the digital recording path for a simple vocal session.

Example Prompt

A student records vocals into a DAW using a microphone and interface. Explain each stage of the signal path and identify where analog audio becomes digital and where digital audio becomes audible sound again.

26. Grading Rubric

Participation / Discussion – 20 points

• 18–20: engaged, accurate vocabulary, strong participation

• 14–17: mostly engaged

• 10–13: limited participation

• 0–9: off task or absent

Worksheet – 25 points

• 23–25: accurate and complete

• 18–22: mostly accurate

• 12–17: partial understanding

• 0–11: weak or incomplete

Quiz – 25 points

• based on total correct

Lab / Application Activity – 30 points

• 27–30: strong understanding of digital path and concepts

• 21–26: mostly correct

• 15–20: basic understanding

• 0–14: minimal or inaccurate

27. Pacing Guide for Teachers

45-Minute Version

• 5 min hook

• 15 min analog vs digital overview

• 10 min sample rate / bit depth intro

• 10 min activity

• 5 min exit ticket

60-Minute Version

• 10 min intro

• 20 min direct instruction

• 10 min demo

• 15 min worksheet

• 5 min wrap-up

90-Minute Version

• 10 min hook

• 25 min instruction

• 15 min demonstration

• 20 min lab or activity

• 10 min assessment

• 10 min wrap-up

28. Teacher Talking Points

These are exact lines teachers can use:

• “Digital audio is sound represented as data.”

• “Analog is continuous. Digital is measured.”

• “Sampling is how the system captures audio information over time.”

• “Sample rate is about how often the system measures.”

• “Bit depth is about level detail.”

• “Converters are the bridge between the audio world and the computer.”

• “DAWs do not record air directly—they record digital representations of sound.”

• “Understanding digital audio helps you use modern recording tools with confidence.”

29. Common Real-World Studio Connections

Use these to make the lesson relevant.

• Every DAW session depends on digital audio.

• Audio interfaces matter because they handle conversion.

• Students often see sample rate and bit depth in session settings before they understand what they mean.

• File formats affect how audio is stored, shared, and used.

• Digital workflow makes editing vocals, arranging songs, and exporting projects possible.

• Misunderstanding digital settings can lead to confusion in recording sessions.

30. Teacher Notes on Classroom Management

Because this chapter may include software or gear demonstrations:

• keep the explanation practical

• avoid drowning students in technical numbers too early

• repeat the difference between analog and digital often

• use visuals whenever possible

• connect each concept to something students already know, like voice memos, music apps, or DAWs

• make students explain concepts back in plain language

31. Mini-Lesson on Professional Relevance

Include this as a short required section.

Key Points

• digital audio is at the center of modern recording

• engineers and producers must understand session settings

• digital literacy helps prevent errors and improves workflow

• understanding conversion and playback makes studio work more professional

Suggested Teacher Line

“If you use a DAW, record vocals, edit music, or export songs, you are already working in digital audio whether you realize it or not.”

32. Accommodations / Inclusion

For students needing extra support

• use guided notes

• break the lesson into small sections

• use repeated visual examples

• avoid advanced theory unless necessary

• relate concepts to phone recording or simple software

For advanced students

• discuss Nyquist concept at a very basic preview level if appropriate

• discuss higher sample rates in professional use

• compare 16-bit and 24-bit workflows

• preview latency and buffer ideas

For general accessibility

• present verbally and visually

• use simple charts

• reinforce vocabulary with examples

• allow pair discussion before written response

33. Homework Options

Option 1

• Write a paragraph explaining the difference between analog audio and digital audio.

Option 2

• Explain sample rate and bit depth in your own words using simple language.

Option 3

• Describe how an interface helps a computer record sound.

34. Extension Activities

For stronger groups or longer periods:

• compare WAV and MP3 in more detail

• show session settings in a DAW

• trace the full recording path from mic to export

• preview latency and buffer concepts

• discuss why video projects often use 48 kHz

• compare casual phone recording to professional recording workflows

35. Instructor Quick Reference Sheet

Most Important Terms

• digital audio

• analog audio

• sample

• sample rate

• bit depth

• converter

• ADC

• DAC

• DAW

• file format

Most Important Distinction

Sample rate is not bit depth.

Most Important Studio Link

Digital audio is the foundation of modern recording, editing, and playback workflows.

Most Important System Link

Converters connect the analog audio world to digital recording systems.

36. What Mastery Looks Like

A student has mastered Chapter 3 when they can:

• explain what digital audio is

• distinguish analog from digital audio

• describe sampling in simple terms

• explain sample rate and bit depth correctly

• identify the role of converters

• connect digital audio concepts to a DAW workflow

• explain why digital audio matters in modern production
